Description

Overview

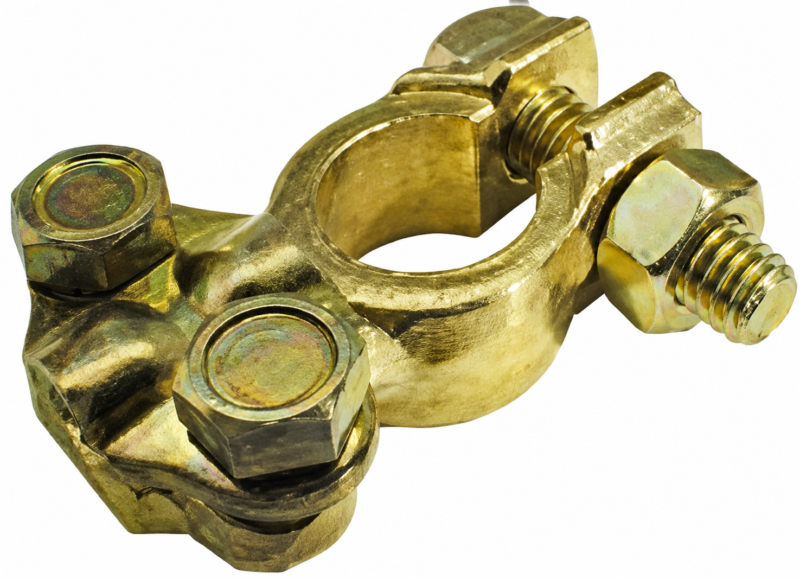

Tridon saddle style battery terminal gives trailer, truck and workshop electrical repairs a brass terminal for battery cable connection work. The saddle clamp design accepts stripped cable directly under the clamp, which helps with battery lead repairs where the cable end needs a firm mechanical connection without soldering.

Features

• Saddle style battery terminal for cable clamping.
• Accepts 8-50mm2 cable, equivalent to 8-0 B&S.
• Universal post style for battery terminal replacement work.
• Brass finish for battery and starter circuit service use.

Specifications and Materials

This battery terminal uses a saddle entry clamp style and suits 8-50mm2 cable, equivalent to 8-0 B&S. The terminal has a universal post style and brass finish.

Part number: TBT11.

For battery terminal range details, see the Tridon battery terminal range

Compatibility and Fitment

Check the cable size, battery post style and available clamp clearance before ordering. The main mismatch risk with this terminal is choosing a clamp that will not accept the cable size or does not sit cleanly on the battery post.

Strip the cable cleanly, seat the conductor fully under the saddle clamp and tighten the fasteners evenly. Do not clamp over damaged, oxidised or partly cut wire strands.

Related Parts

Check the related battery terminal versions below against the cable size and battery layout before ordering.

Compliance and Safety

Disconnect the battery safely before replacing battery terminals. Clean corrosion from the post and cable end, then tighten the terminal so it cannot rotate or lift under hand pressure.

After fitting, check cable routing, battery lid clearance and nearby metalwork. Protect the connection from rubbing, accidental shorting and moisture where the trailer or vehicle layout exposes the battery area.

Trailer Applications

Workshops use saddle style battery terminals on trailer battery boxes, auxiliary battery systems, starter cable repairs, workshop plant, caravans and service vehicles. The 8-50mm2 cable range suits heavier battery leads and accessory power cables that need a clamp-style terminal at the battery post.

Why Choose ICS Trailers

ICS Trailers supplies battery terminals, cable, connectors, heatshrink and trailer electrical parts for repair and fitment work. If you are replacing a damaged terminal, check the old cable size, battery post position and available clearance before ordering.
