Description

Overview

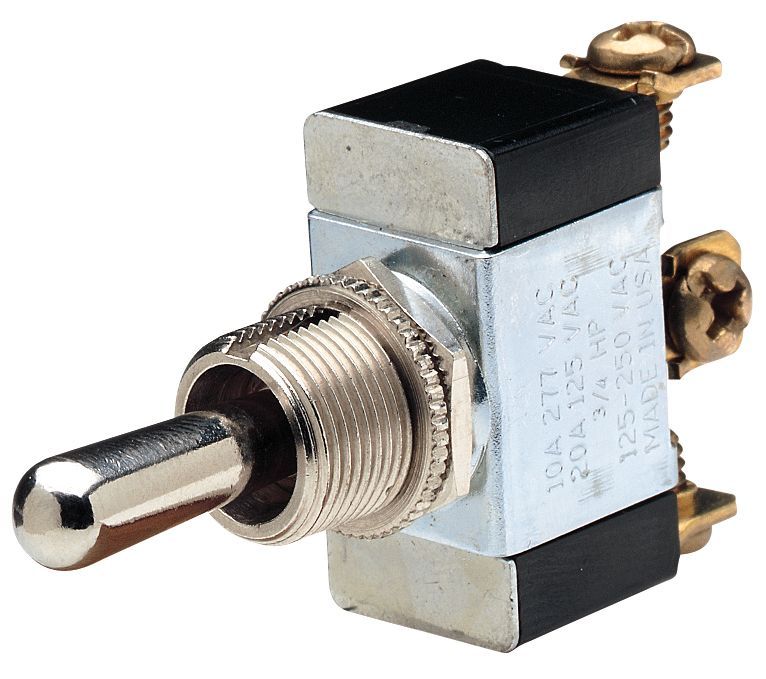

The Narva SPDT on off momentary on heavy duty toggle switch controls a single circuit with one maintained on position, a centre off position and one momentary on position. It suits low voltage accessory control where the operator needs a normal on setting plus a temporary-on function from the same toggle.

Features

• SPDT on/off/momentary on switching function.
• Screw terminals for secure wire termination.
• Rated at 20A at 12V and 10A at 24V.
• Fits a 12mm diameter panel mounting opening.

Specifications and Materials

Heavy duty metal toggle switch supplied as a blister pack of 1. Match the switching action, screw terminal layout, voltage, current rating and panel hole size before fitting.

Part number: 60064BL.

See Narva heavy duty toggle switch information

Compatibility and Fitment

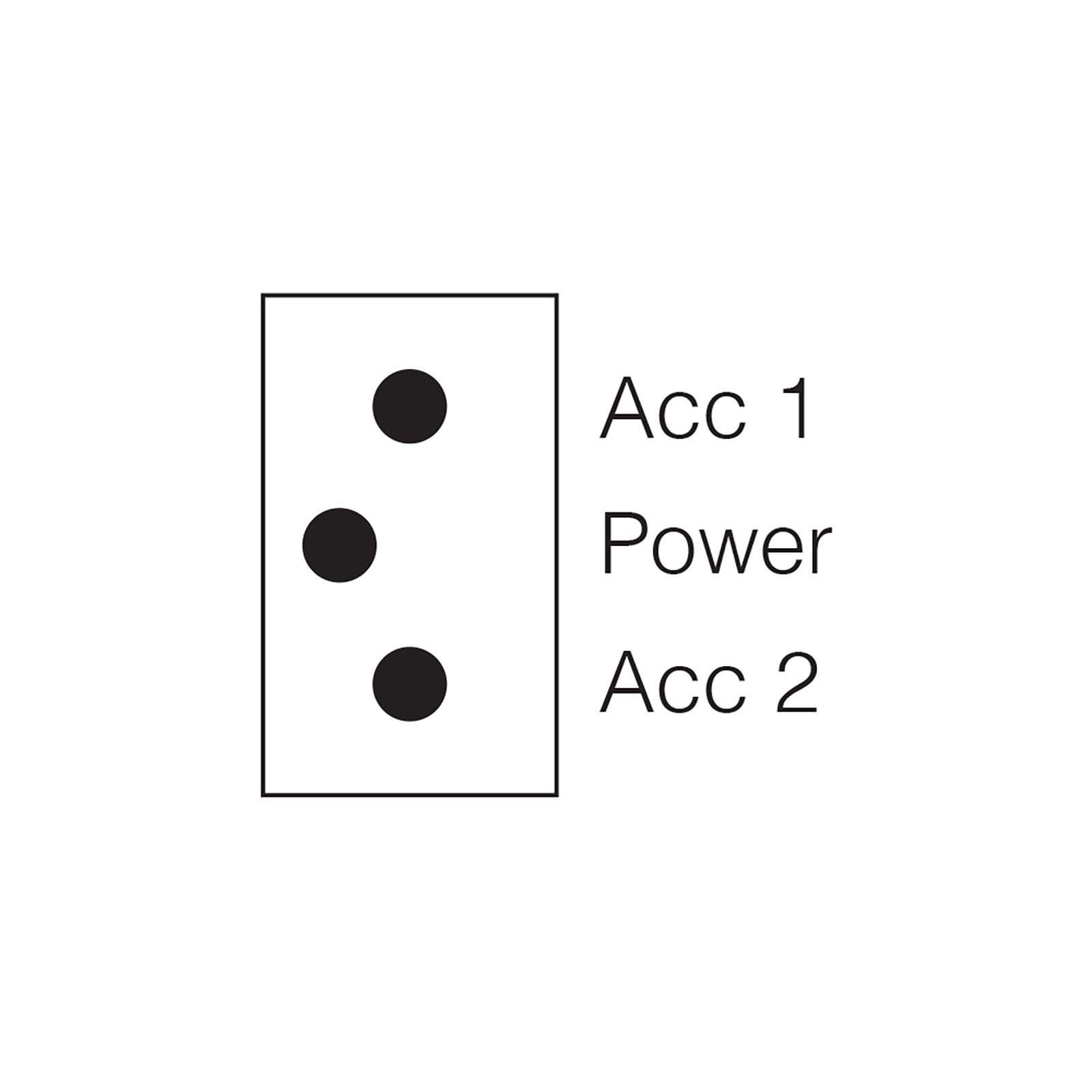

Check that the circuit requires an SPDT switch with one maintained on position and one momentary on position. Confirm the 12mm mounting opening, screw terminal wiring, connected load and system voltage before installing.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Keep the connected load within the switch rating and use circuit protection suited to the accessory being controlled. Tighten the screw terminals firmly and check clearance behind the panel so the terminals cannot short against nearby metalwork.

Trailer Applications

Workshops fit SPDT momentary toggle switches in control panels, dashboards and auxiliary body circuits where a maintained on setting and a temporary-on action are both needed, such as pump, test, lift, horn or accessory control circuits.
