Description

Overview

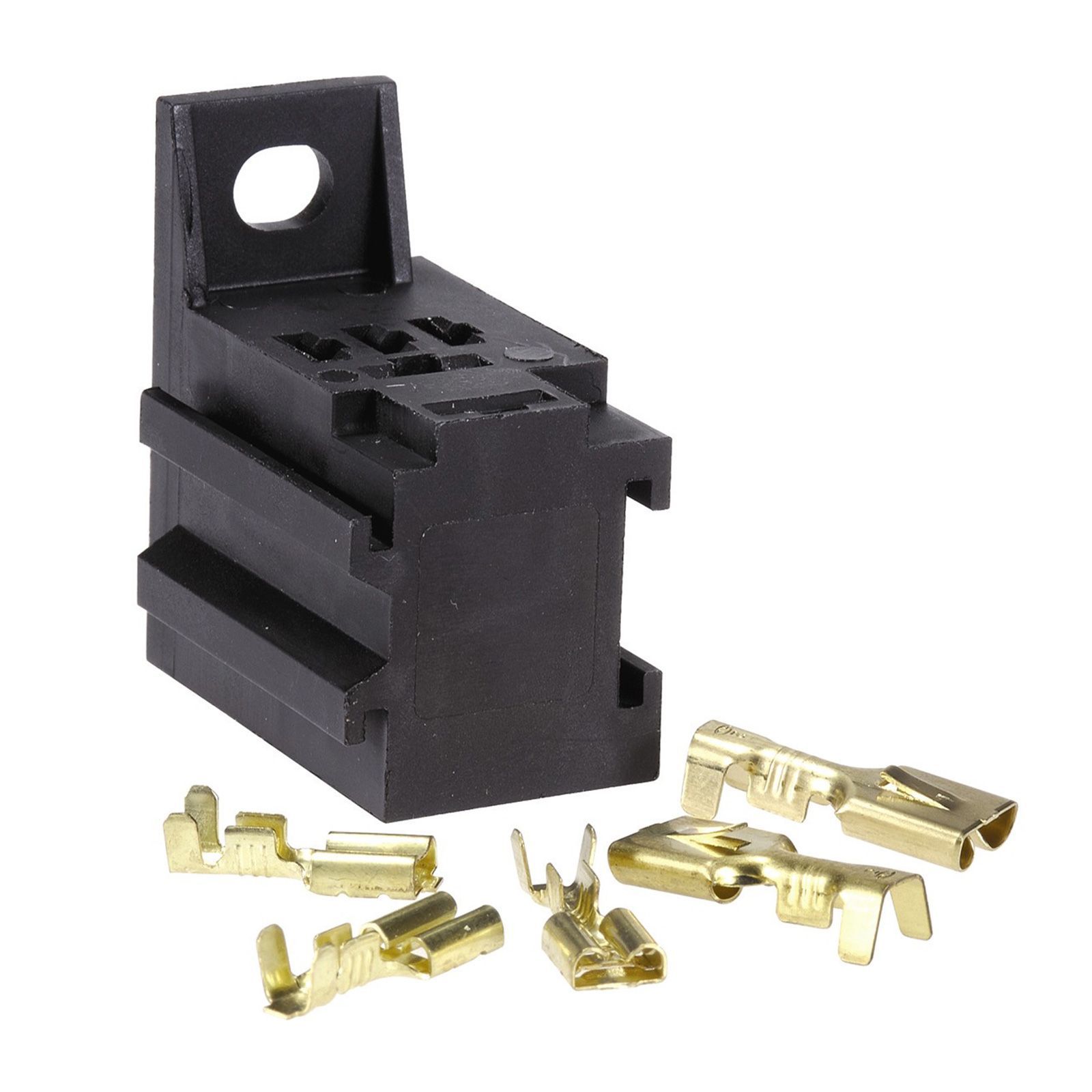

Relay connector for micro relays gives 4 and 5 pin micro relays a matching plug-in base for clean wiring repairs and accessory circuit installs. It suits relay terminals with 6.3mm x 0.8mm and 4.8mm x 0.8mm flat pin connectors, so the relay can seat correctly instead of relying on loose individual terminals.

Features

• Suits 4 and 5 pin micro relays
• Accepts 6.3mm x 0.8mm and 4.8mm x 0.8mm flat pin connectors
• Blister pack includes 1 relay connector
• Helps keep relay wiring grouped, supported and easier to service

Specifications and Materials

The relay connector for micro relays matches compatible Narva 4 and 5 pin micro relay layouts with mixed flat pin terminal sizes.

Part number: 68086BL.

Use it where the relay and wiring loom require a connector body for 6.3mm x 0.8mm and 4.8mm x 0.8mm flat pins.

See the manufacturer relay connector specifications

Compatibility and Fitment

Match the relay body type, pin count, terminal width and wiring layout before ordering. This connector suits micro relays, so compare the relay footprint carefully if the existing circuit uses a standard relay, mini relay or separate relay socket.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Crimp terminals correctly, then check each wire position before installing the relay. Replace heat-damaged terminals, loose wiring or poor crimps because a weak relay connection can cause intermittent switching, voltage drop or overheated terminals.

Trailer Applications

Workshops use this relay connector for micro relays in trailer, caravan, utility and vehicle accessory circuits where the relay needs a removable connector base for neater wiring and easier fault finding.

Why Choose ICS Trailers

ICS Trailers supplies electrical parts for trailer wiring, relay repairs and accessory circuit work. For relay connector replacement, matching the relay footprint and terminal size keeps the wiring repair clean.
