Description

Overview

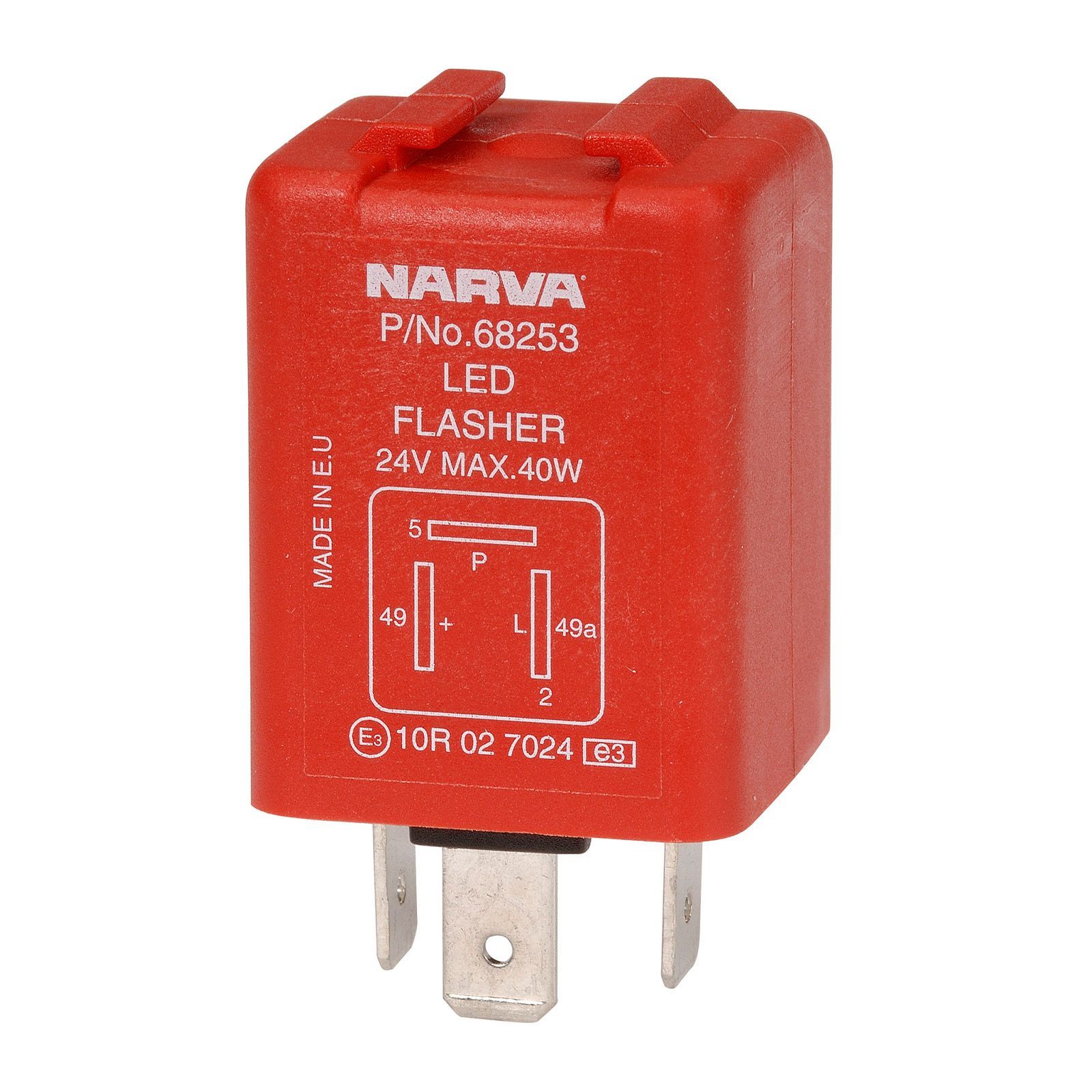

24V 3 pin LED flasher unit controls indicator flashing on 24V circuits that run LED lamps or a mixed LED and incandescent load. The pilot function suits applications that need pilot indication while keeping the flasher compatible with very low current LED indicator setups.

Features

• 24V 3 pin electronic flasher unit with pilot function
• Suitable for LED indicator lamps
• Operates from 1mA up to 1.6A per side

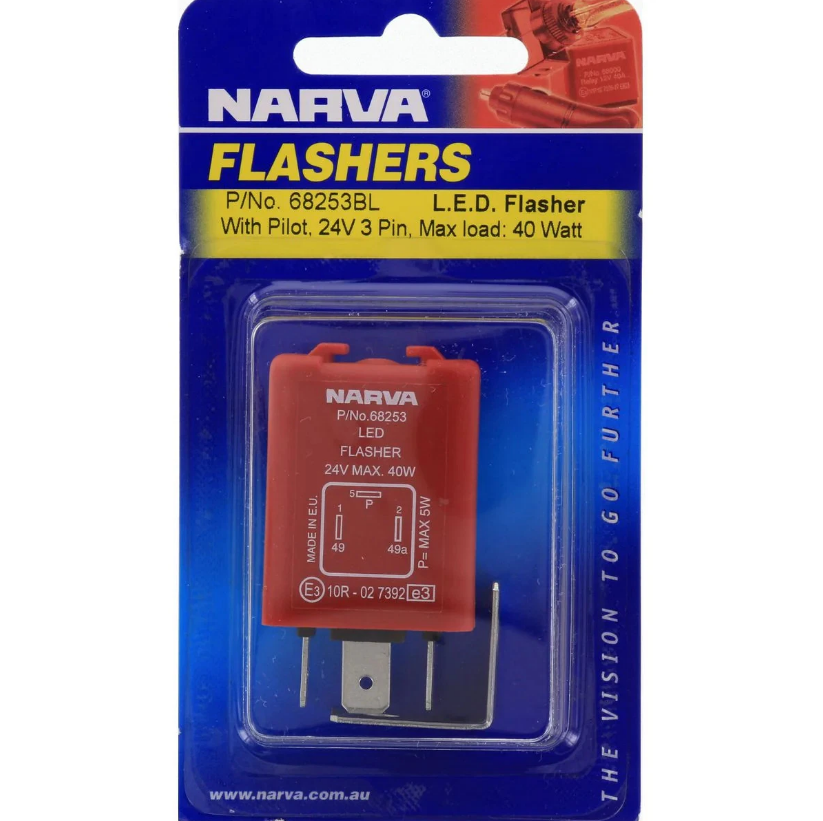

• Blister pack includes 1 flasher unit

Specifications and Materials

The 24V 3 pin LED flasher unit suits LED indicator lamp applications and mixed LED/incandescent circuits where the load stays within the rated range.

Part number: 68253BL.

The flasher operates from 1mA minimum current to 1.6A maximum per side, equal to 40W per side.

See the manufacturer 24V electronic flasher range

Compatibility and Fitment

Match the system voltage, pin count, pilot requirement and indicator lamp load before ordering. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 68223BL

Compliance and Safety

Check the indicator and hazard circuits after installation, then confirm both sides flash correctly with the trailer or vehicle lamps connected. If the flash rate remains incorrect, inspect the earths, lamp load, terminals and wiring before replacing further components.

Trailer Applications

Workshops fit this 24V 3 pin LED flasher unit to 24V trailers, trucks, caravans and service vehicles where LED indicator lamps need a low-load electronic flasher with pilot indication.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies electrical parts for trailer wiring, lighting circuits and fleet service work. For flasher replacement, matching voltage, pin layout and lamp load keeps the indicator repair straightforward.
