Description

Overview

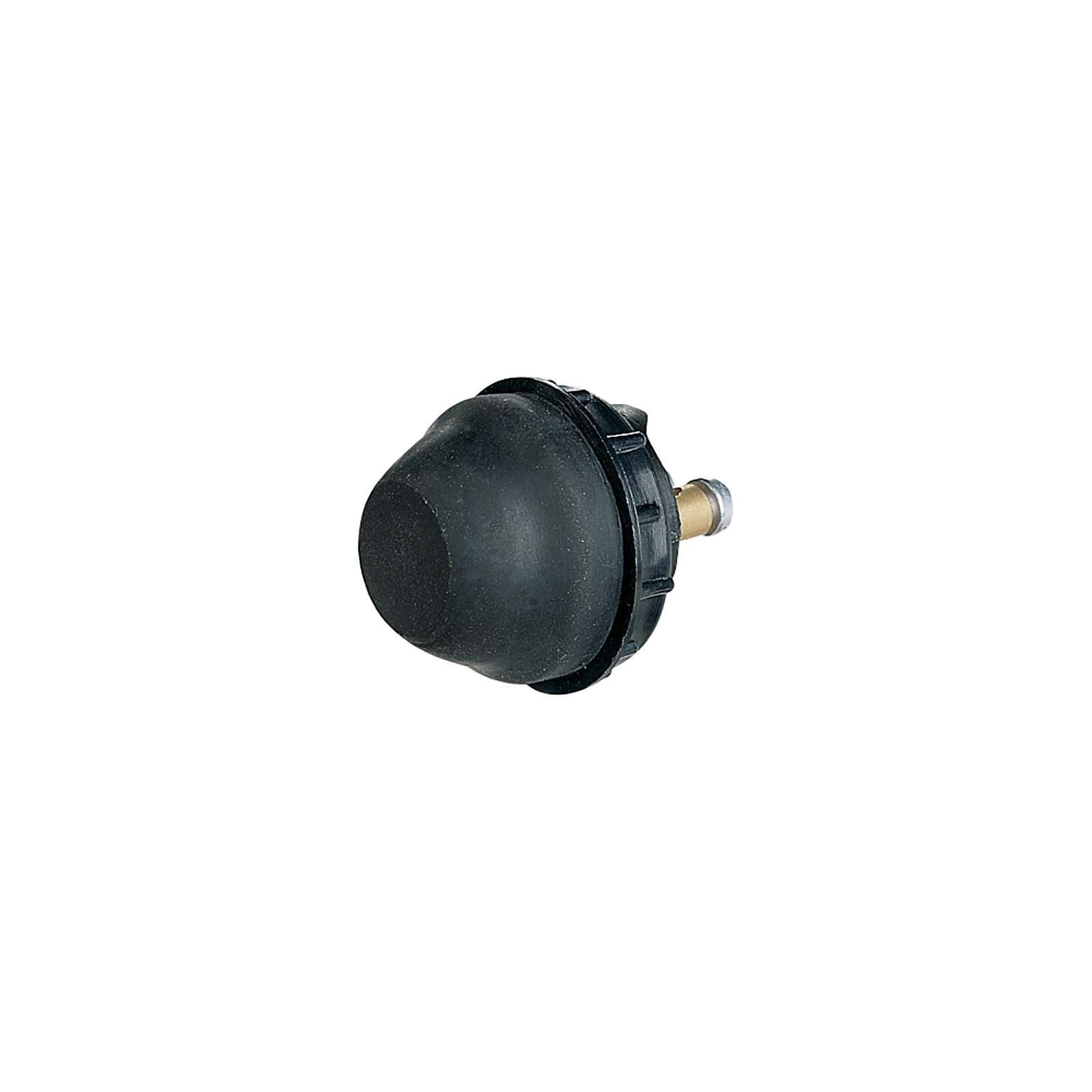

The momentary push button switch gives 12V and 24V auxiliary circuits a sealed panel control point for short-duration activation. Press the button to complete the circuit, then release it so the switch returns to off. The waterproof rubber boot helps protect the button face where moisture, road grime or wash-down exposure can reach the panel.

Features

• SPST momentary action suits short-duration control circuits.

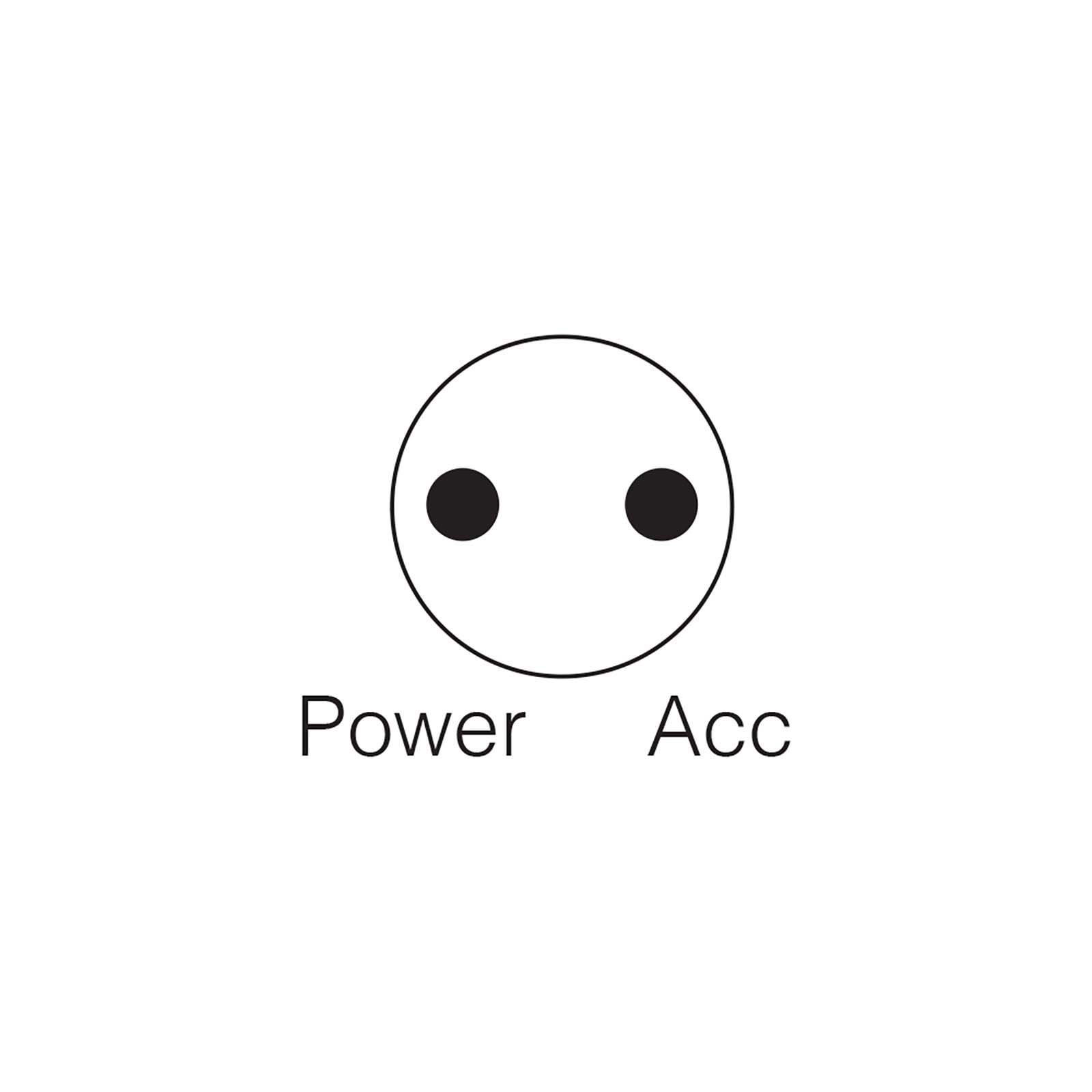

• Screw terminals give a firm wire connection inside the panel.
• Waterproof rubber boot comes with the switch for face-side protection.
• 26mm mounting opening helps match existing panels and switch cut-outs.

Specifications and Materials

This momentary push button switch carries 16A at 12V and 8A at 24V. It uses a single pole single throw contact layout with screw terminals. Match the 26mm mounting opening before drilling or replacing an existing switch.

Part number: 60039BL.

See the Narva product information

Compatibility and Fitment

Check the circuit voltage, current draw, panel hole size and terminal access before ordering. Because this switch uses momentary on action, it suits circuits that only need power while the button stays pressed.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm the circuit load stays within the switch rating. Also isolate power before wiring, tighten both screw terminals properly and keep the boot seated so the panel face stays protected.

Trailer Applications

Workshops fit this type of switch into auxiliary panels, accessory circuits, service bodies and trailer control boxes where a short button press needs to trigger a function. For example, it can suit low-voltage switching tasks on 12V or 24V setups when the circuit rating matches.

Why Choose ICS Trailers

ICS Trailers keeps electrical parts focused on practical fitment details, so buyers can match voltage rating, terminal style and panel opening before the job starts.
