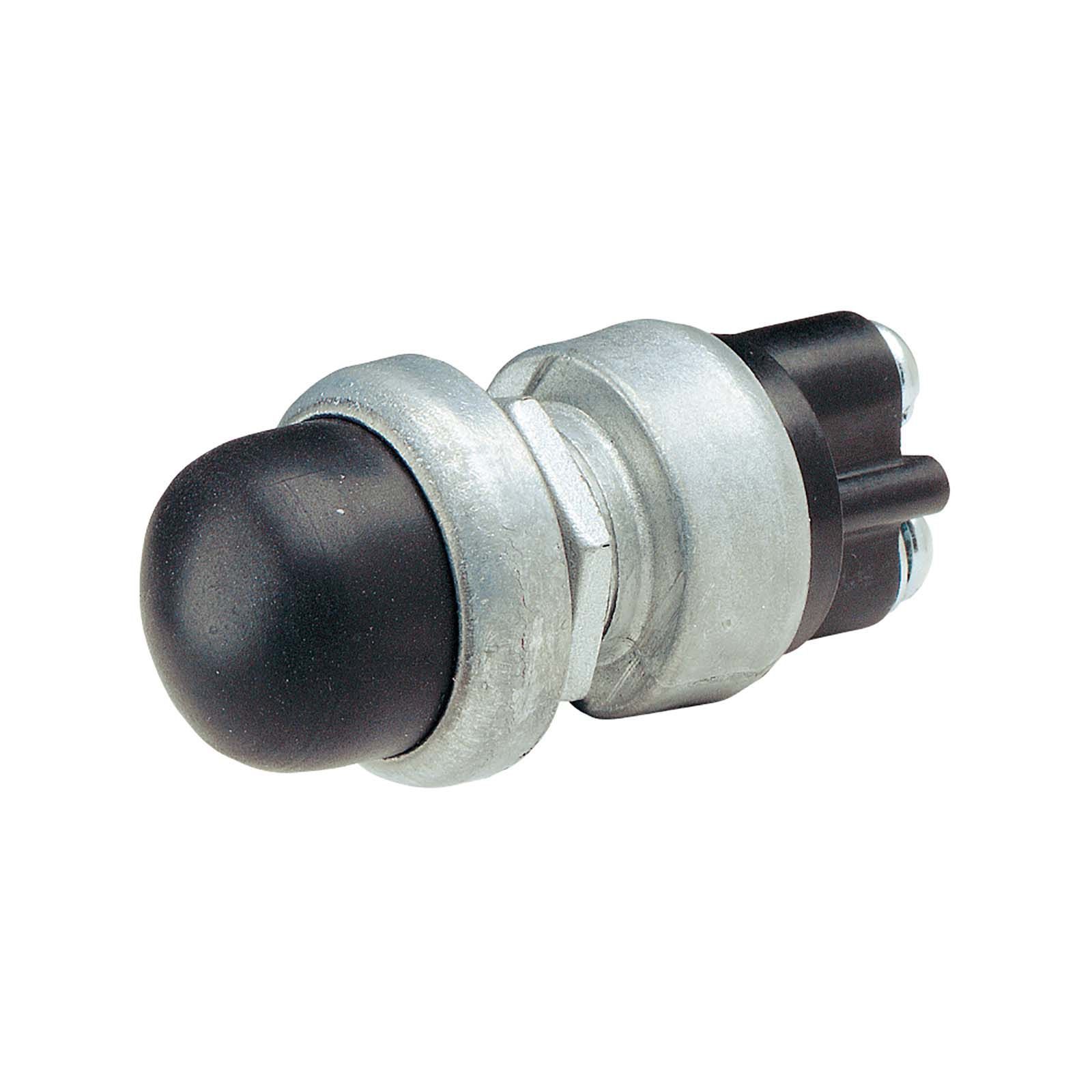

SPST momentary push button switch gives press-and-hold control for a single 12V or 24V trailer accessory circuit. The die cast housing, waterproof neoprene boot, silver contacts and brass screw terminals suit higher-current equipment control jobs.

Features

• Momentary On SPST switching for single-circuit control while pressed.
• Includes waterproof neoprene boot for protected panel mounting.
• Die cast housing with silver contacts and brass screw terminals.
• Rated 60A at 12V and 30A at 24V with a 16mm mounting opening.

Specifications and Materials

This SPST momentary push button switch uses a heavy duty single pole single throw layout, so it suits circuits that need temporary manual operation rather than a latching switch.

Part number: 60033BL.

Use the manufacturer push button switch range when matching the switching action, boot type, current rating and mounting opening

Compatibility and Fitment

Match the SPST momentary action, 60A at 12V rating, 30A at 24V rating and 16mm panel opening before ordering. This switch uses brass screw terminals, so confirm cable size, terminal condition and circuit protection before replacement.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Isolate power before replacing the switch. Also confirm load, fuse protection and terminal tightness, because high-current circuits need secure connections to prevent heat and wiring faults.

Trailer Applications

Workshops fit this SPST momentary push button switch to control horns, pumps, starter-type circuits, auxiliary equipment and other press-to-operate functions on 12V and 24V trailer electrical systems.

Why Choose ICS Trailers

Order this switch with matching terminals, cable protection and replacement boot seals when building or repairing heavy duty trailer accessory circuits. Browse more trailer electrical parts in the Electrical category
