Description

Overview

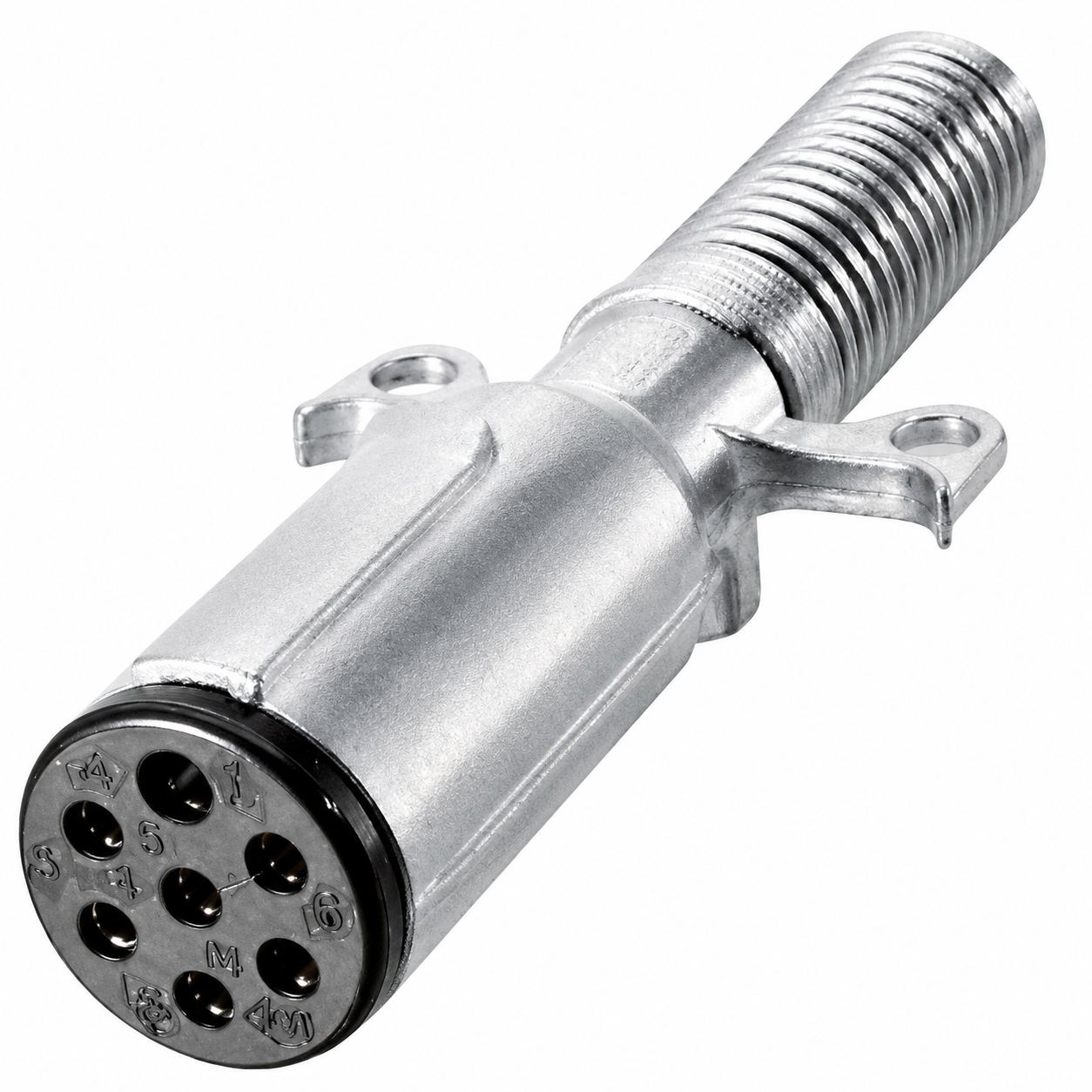

Hella 7 pole SAE plug gives heavy-duty trailer wiring a strong metal plug connection for truck and trailer electrical systems. It suits 12V SAE-style towing setups where the plug needs firm cable support, durable pins and easier handling during regular coupling.

Features

• Die-cast zinc metal housing for heavy-duty trailer electrical connections.
• High-conductivity 100% brass floating pins held between sonic welded inserts.
• Spring cable guard helps protect the cable at the plug entry.
• Larger finger grips help with safer disconnection from a latched socket lid.

Specifications and Materials

Product type: 7 pole SAE metal plug.

Material: die-cast zinc housing with brass floating pins.

Maximum load: 70A at 12V.

Connection type: screw terminals with metal spring tail.

Wiring standards: AS 4735-2003, ISO 1185 and SAE J560B.

Part number: 4934.

Use the Hella trailer plugs and sockets guide for heavy-duty connector specifications and wiring standard details

Compatibility and Fitment

Match this plug to the socket style and wiring standard before ordering. Also check the cable size, circuit layout and available cable movement, because SAE heavy-duty plugs do not suit every 7 pin trailer socket format.

For wiring, connect each terminal to the correct trailer circuit. Then tighten the cable support so drawbar movement does not pull directly on the terminals.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 8JA 905 392-001, 8JA905392001, ELH4934

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Disconnect power before fitting the plug or changing wiring. After installation, test each lighting and auxiliary circuit, then confirm plug engagement, cable guard position and terminal security before the trailer returns to service.

Trailer Applications

Heavy trailers, truck bodies and towing setups use the Hella 7 pole SAE plug where a robust 7 pole connector handles regular coupling and uncoupling. Therefore, workshops should confirm the SAE connector format before replacing lighter round or flat trailer plugs.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers can help match heavy-duty plugs, sockets and trailer wiring accessories to the connector type already fitted to the vehicle or trailer. See more parts in ICS Trailers electrical
