Description

Overview

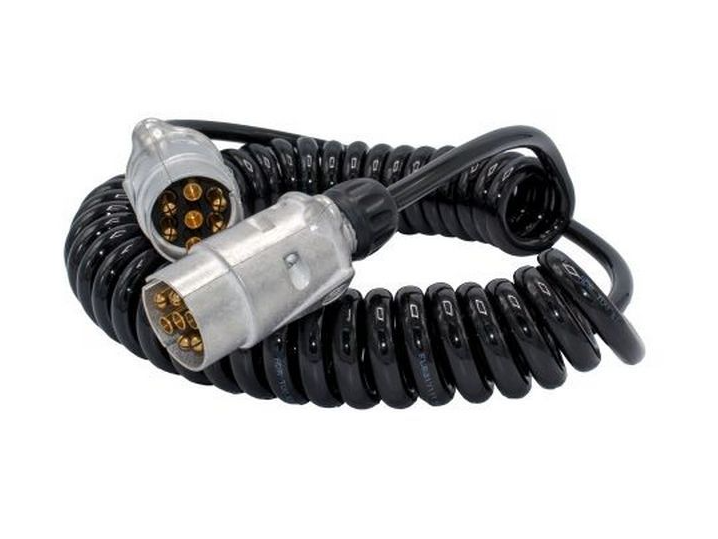

Hella 7 pin ISO suzi coil connects towing vehicle and trailer lighting circuits through a coiled cable assembly with long-tail reach. It uses metal 7P ISO 1724 plugs at both ends, so it suits light-duty 7 pin lighting connections where the vehicle and trailer both run the ISO 1724 or old AS 2513 plug style.

Features

• 7 pin lighting suzi coil with long-tail configuration.
• Metal 7P ISO 1724 / old AS 2513 plugs at both ends.
• 5.6m maximum working length for longer trailer connection reach.
• 50mm outer coil diameter with PG gland cable outlet.

Specifications and Materials

This Hella 7 pin ISO suzi coil uses silver-coloured break-proof metal plug housings, PG gland cable outlets and a 50mm outer coil diameter. It carries 6 x 1.5mm² plus 1 x 2.5mm² wire cross-section, with 300mm and 1300mm tail ends for the long-tail layout. Part number: 8KA227440111.

Match the plug type, pin count, cable length and lighting circuit wiring before ordering.

See the Hella cable assemblies guide

Compatibility and Fitment

Check both towing vehicle and trailer sockets before fitting this Hella 7 pin ISO suzi coil. It suits 7 pin ISO 1724 / old AS 2513 lighting connections, but it does not replace ABS/EBS suzi coils or heavy-duty SAE J560 lighting leads.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 227 440-111, 227440111, 8KA 227 440-111, 8KA227440111, 8KA-227-440-111, 8KA227440111

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the plugs, pins, cable sheath and strain relief before connecting the trailer. Replace damaged or stretched cables, because poor lighting connections can cause intermittent trailer lamps or loss of lighting functions. After fitting, test tail, stop and indicator circuits before road use.

Trailer Applications

Workshops use this Hella 7 pin ISO suzi coil on truck, trailer and light trailer lighting connections where ISO 1724 / old AS 2513 plugs match the existing setup. The long-tail layout gives extra straight cable reach where the standard coil length does not suit the drawbar or coupling arrangement.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies trailer electrical connection parts for lighting repairs, fleet maintenance and workshop fitment. This Hella 7 pin ISO suzi coil gives buyers the plug type, working length and long-tail detail needed before replacing a trailer lighting lead.
