Description

Overview

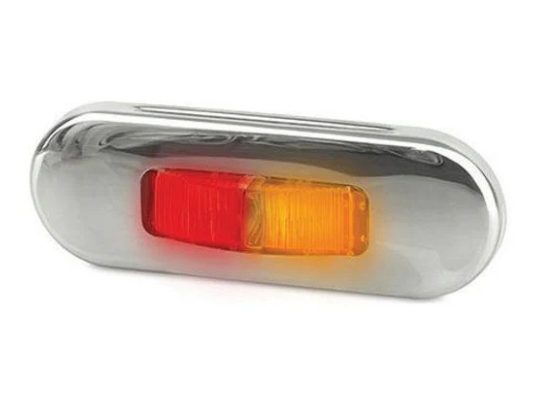

DuraLED Slim Side Marker Lamp Stainless Rim supports red/amber side marker lighting on trailers, trucks and heavy vehicle bodywork. The clear optic illuminates red and amber when powered, while the flush mount body keeps the lamp low profile on the side of the vehicle.

Features

• Red/amber side marker lamp for horizontal flush mounting.
• Includes stainless steel bezel for the finished rim detail.
• Pre-wired with 0.5m sheathed multi-core cable.
• Multivolt operation suits 12V and 24V vehicle systems.

Specifications and Materials

The DuraLED Slim Side Marker Lamp Stainless Rim uses a high impact acrylic lens with a clear appearance until illuminated.

It runs at 0.5W and carries reverse polarity protection, IP 6K7 and IP 6K9K protection ratings.

The lamp mounts to a flat surface with two Ø5mm screws or bolts, and the centre cable exit needs a Ø10mm hole.

Part number: 2083S.

official HELLA DuraLED marker lamp page gives the lamp family specifications and spare part details

Compatibility and Fitment

Match the lamp length, mounting hole centres, cable exit position and red/amber orientation before ordering. The DuraLED Slim Side Marker Lamp Stainless Rim places the red side toward the rear of the vehicle and the amber side toward the front.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 2PS 980 868-061, 2PS980868061

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm ADR side marker placement before fitting, then check the lamp visibility angles and horizontal reference axis. Also solder and heat shrink the wire joints, because sealed connections help protect the marker circuit in wet trailer service.

Trailer Applications

Trailer builders and repair workshops fit the DuraLED Slim Side Marker Lamp Stainless Rim to side bodywork where a compact red/amber LED marker is required. It suits flat mounting areas on heavy trailers, rigid bodies, service bodies and transport equipment.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers can help match marker lamps with the correct wiring, mounting position and trailer lighting requirements.
