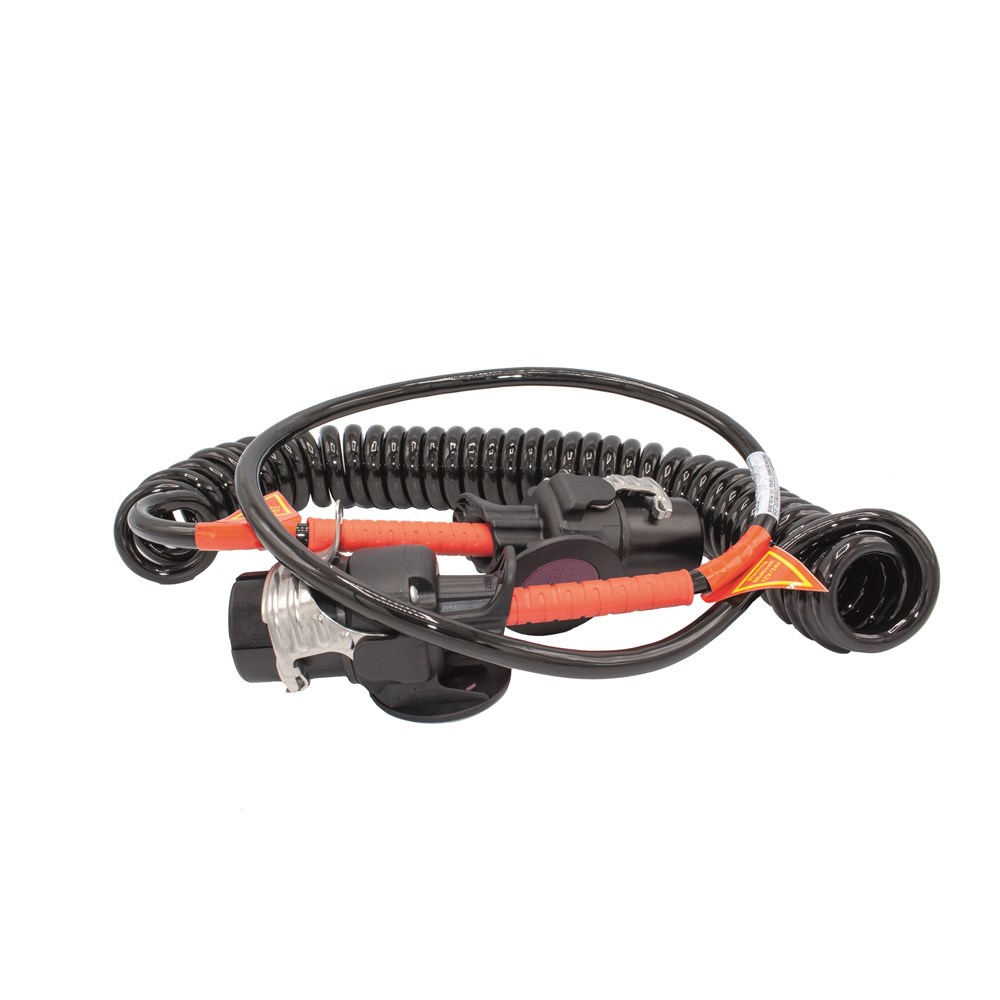

ABS/EBS Suzi Coil 7 Pin Long Tail Hella
ABS/EBS Suzi Coil 7 Pin Long Tail Hella
$246.00
ABS/EBS suzi coil 7 pin for heavy trailer braking connections, with Multivolt 12V/24V operation, 5.2m maximum working length and long tail ends for extra reach.
Part number 8KA227440181.
Description
Overview
ABS/EBS suzi coil 7 pin connects the prime mover and trailer braking electronics through a coiled Multivolt cable assembly. The long tail layout gives extra reach at one end, while the 5.2m maximum working length supports heavy trailer connection setups that need movement through turning and articulation.
Features
- 7 pin ABS/EBS suzi coil for trailer braking power supply connections.
- Multivolt 12V/24V compatibility for ISO 7638-1 and ISO 7638-2 systems.
- 5.2m maximum working length with long tail cable ends.
- Temperature range from -40°C to 100°C with 50mm outer coil diameter.
Specifications and Materials
This ABS/EBS suzi coil 7 pin uses a 5 core plus 2 core cable layout, with 5 x 1.5mm² and 2 x 4.0mm² wire cross section. The long tail ends measure 300mm and 1000mm, so check the trailer lead routing and socket position before ordering.
Part number: 8KA227440181.
For manufacturer technical data, see the official HELLA cable assemblies guide
Compatibility and Fitment
Match this coil to 7 pin ISO 7638-1 or ISO 7638-2 ABS/EBS trailer connections. Also confirm the prime mover and trailer voltage compatibility before use, because Multivolt systems still need the correct vehicle and trailer setup.
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Replacement component | 8JA 227 440-091 | 7 pin Multivolt ABS/EBS plug |
| Used with | 8HG 227 440-001 | Park socket |
| Used with | 8JB 227 440-011 | 7 pin 12V ABS/EBS socket |
| Used with | 8JB 227 440-021 | 7 pin 24V ABS/EBS socket |
| Service tool | 8PD 004 508-031 | 7 pin ISO 7638-1 socket tester |
Compliance and Safety
Inspect the coil before each service interval for cuts, stretched sections, plug damage and poor recoil. If the lead pulls tight, drags across the catwalk or no longer sits clear through articulation, replace it before the ABS/EBS connection becomes unreliable.
Trailer Applications
Fleets use this ABS/EBS suzi coil 7 pin on heavy vehicle trailer combinations that run ABS or EBS braking connections. The long tail format suits setups where one socket position needs extra straight cable before the coil section begins.
Why Choose ICS Trailers
ICS Trailers can help match ABS/EBS coils, plugs and sockets against the trailer connection layout before ordering. Browse more parts in Electrical
