ABS/EBS Plug 7 Pin 24V Screw Contact

Allan Davis on 23/06/2026

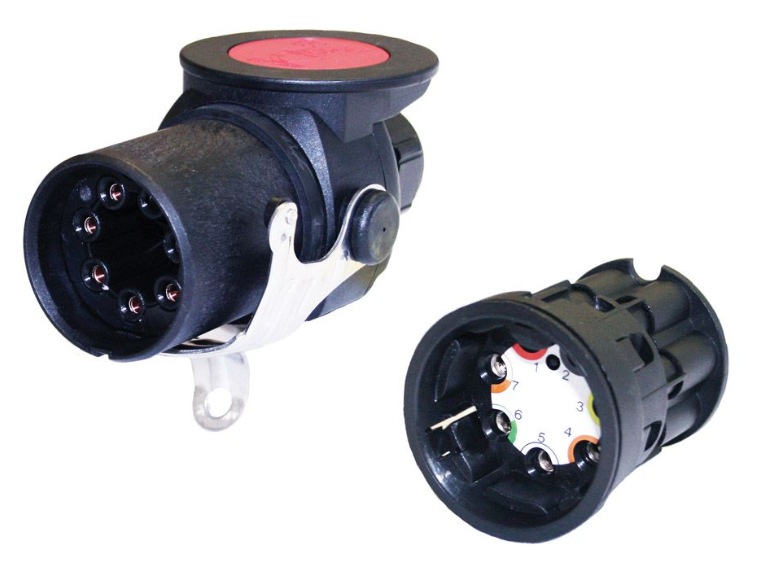

ABS/EBS 7 pin 24V trailer plug with screw contacts and black reinforced housing

ABS/EBS Plug 7 Pin 24V Screw Contact

$44.00

ABS/EBS plug 7 pin 24V with screw contacts for heavy vehicle trailer braking wiring, using reinforced composite housing, rubber seals, mechanical strain relief, colour coded wiring and 9 to 16mm cable acceptance for clean workshop replacement.

Part number 8JA227440041.

Quick Quote

SKU: 8JA227440041 Category: Tags: , , , , , , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

ABS/EBS plug 7 pin 24V connects heavy vehicle trailer braking wiring through a 7 pole ISO 7638-1 plug. It suits 24V ABS and EBS trailer connection systems where a screw contact replacement plug is required. Because the body includes rubber sealing and mechanical strain relief, it suits workshop replacement on transport equipment that sees regular coupling, uncoupling and road grime.

Features

  • 7 pin 24V ABS/EBS trailer plug with screw contact termination.
  • Reinforced composite housing with rubber seals.
  • Mechanical strain relief helps protect the cable termination.
  • Colour coded internals support cleaner workshop wiring.

Specifications and Materials

This ABS/EBS plug 7 pin 24V accepts 9 to 16mm cable and uses screw contacts for service replacement wiring. The 24V DC plug follows ISO 7638-1 and suits seven-pin heavy vehicle ABS/EBS braking connections. It also latches securely into the matching socket when the plug and socket are correctly coupled.

Part number: 8JA227440041.

Use the HELLA ABS/EBS truck and trailer wiring catalogue when matching ISO 7638 plug and socket details

Compatibility and Fitment

Check the vehicle voltage, plug type, cable diameter, pin layout and socket condition before ordering. The ABS/EBS plug 7 pin 24V suits ISO 7638-1 24V ABS/EBS trailer wiring, not 12V ISO 7638-2 systems. Also confirm that the cable sheath fits the 9 to 16mm cable entry before terminating the contacts.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Used with 8JB 227 440-021 7 pin 24V ABS/EBS socket
Used with 8KA 227 440-061 24V ABS/EBS suzi coil
Service part 8HG 227 440-001 ABS/EBS park socket
Service tool 8PD 004 508-031 ISO 7638-1 socket tester
Related version 8JA 227 440-091 Multivolt ABS/EBS plug



Compliance and Safety

Confirm 24V compatibility before fitting, because ABS/EBS plug and socket systems must match the vehicle wiring standard. Tighten the cable strain relief correctly, keep sealing faces clean and inspect the socket latch before putting the trailer back into service. If the wiring shows corrosion or heat damage, replace the affected cable section rather than only changing the plug.

Trailer Applications

Workshops fit this plug to heavy trailers, semi-trailers, prime mover leads and commercial transport equipment with 24V ABS/EBS braking connections. It suits repair work where the existing plug body, terminals, seals or cable retention no longer hold up to normal fleet use.

Why Choose ICS Trailers

ICS Trailers can help match trailer electrical parts by plug type, voltage, wiring standard and cable setup. Browse more trailer plugs, sockets and wiring parts in our Electrical

Online prices apply to website orders only. In-store pricing may differ.
