24V Amber SPST On/Off Rocker Switch

Allan Davis on 06/05/2026

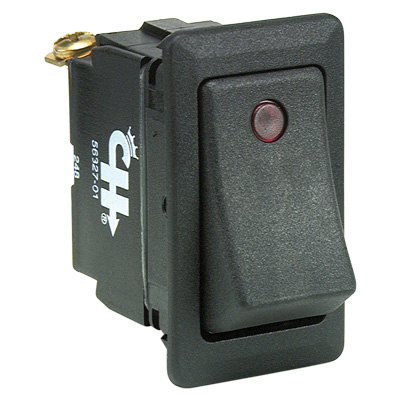

24V amber rocker switch with black actuator and snap-in body
24V Amber SPST On/Off Rocker Switch - Image 2
24V Amber SPST On/Off Rocker Switch - Image 3
24V Amber SPST On/Off Rocker Switch - Image 4

24V Amber SPST On/Off Rocker Switch

$34.00

24V amber rocker switch for vehicle, trailer and equipment control panels, with SPST On/Off operation, dependent pilot illumination, 3 blade terminals and snap-in mounting for a 21.1mm x 36.8mm panel hole when replacing an existing wide-body switch.

Part number 58328-62BL.

Quick Quote

SKU: 58328-62BL Category: Tags: , , , , , , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

24V amber rocker switch controls auxiliary electrical circuits from a compact snap-in panel switch. The SPST On/Off function suits simple single-circuit control, while the dependent amber pilot light comes on with the switched load for a clear visual status check.

Features

  • SPST On/Off operation suits single-circuit control panels.
  • Dependent pilot illumination lights with the connected load.

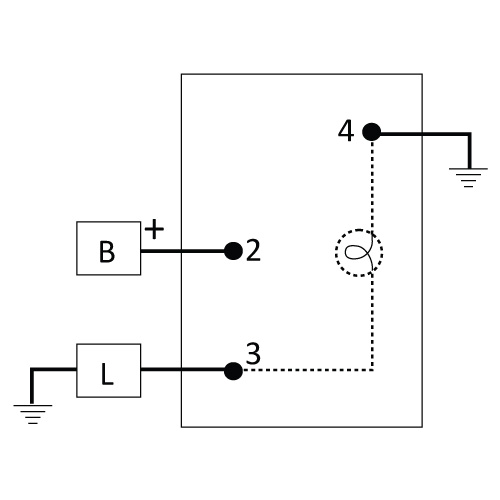

  • 3 blade terminals and silver contacts support straightforward wiring.

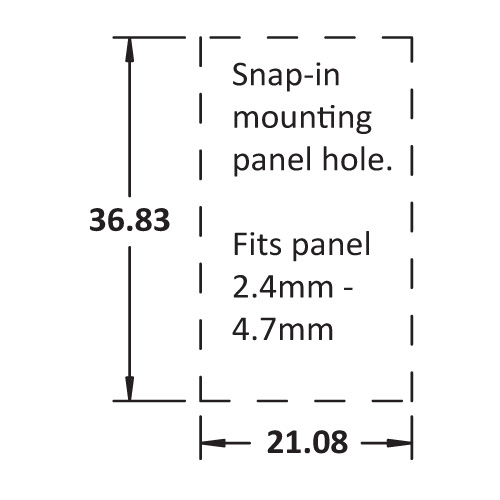

  • Snap-in mounting suits a 21.1mm x 36.8mm panel hole.

Specifications and Materials

This 24V amber rocker switch uses a black illuminated actuator with a wide bezel and sealed switch body. The switch measures 43mm high x 41mm deep x 24mm wide, and it fits panels from 2.36mm to 4.73mm thick. Check the circuit load, panel cut-out and terminal layout before fitting.

Part number: 58328-62BL.

See Cole Hersee rocker switch product information

Compatibility and Fitment

Match the switch voltage, SPST On/Off action, amber pilot colour and panel opening before ordering. If the old switch has heat marks, loose terminals or a cracked actuator, inspect the connected wiring before installing the replacement.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Mounting section 82159-1 Rocker switch end section
Mounting section 82159-2 Rocker switch centre section
Mounting bezel 82159-3 Independent mounting bezel



Compliance and Safety

Isolate the power before replacing the switch, then crimp or tighten terminals properly so the blades cannot loosen in service. After installation, test the load and pilot light together because the amber illumination depends on the switched circuit.

Trailer Applications

Workshops use a 24V amber rocker switch on trailer equipment panels, truck body controls, auxiliary lighting panels and machinery dashboards. It suits circuits where the operator needs a simple On/Off rocker with an amber load-status indicator.
