Description

Overview

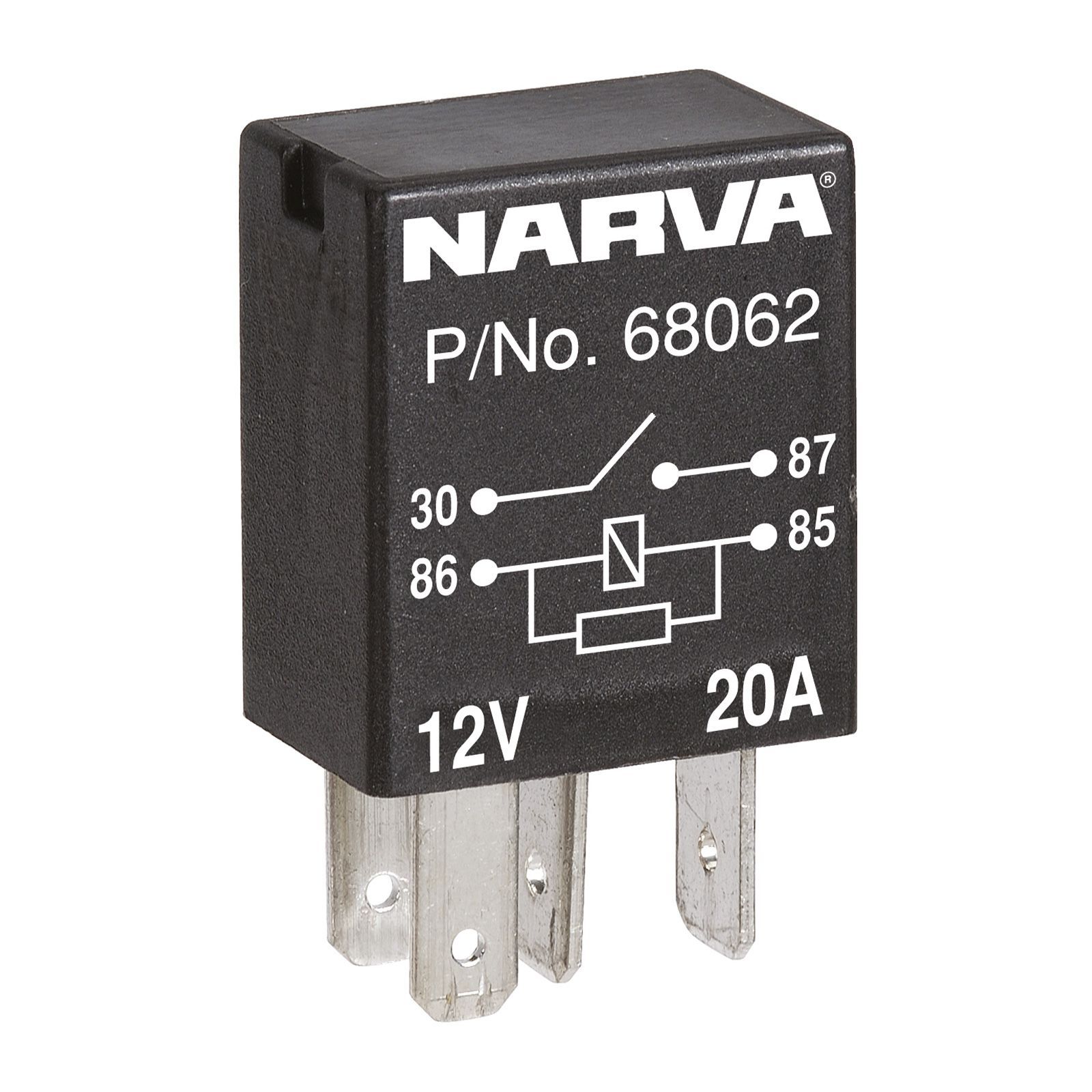

The 12V 20A micro relay with resistor gives a compact switching point for normally open automotive and trailer accessory circuits. It suits jobs where a low-current trigger needs to control a higher-load 12V feed, provided the load, pin layout and terminal orientation match the original circuit.

Features

• Normally open 4 pin micro relay layout for 12V circuits.
• 20A switching capacity for matched accessory loads.
• Integrated resistor protection for controlled coil suppression.
• Blister pack contains one relay.

Specifications and Materials

Product type: resistor protected normally open micro relay.

Electrical rating: 12V, 20A, 4 pin configuration.

Pack format: blister pack of 1.

Part number: 68062BL.

See the Narva relay category information for matching micro relay family details.

Compatibility and Fitment

Match the system voltage, current load, normally open contact arrangement and 4 pin micro relay footprint before ordering. Also compare the terminal layout against the relay being replaced, because similar relay bodies can use different pin arrangements.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Disconnect battery power before wiring or replacing the relay. After fitting, test the switched circuit under load and check that the relay seats firmly in the connector without overheated terminals, loose wiring or corrosion.

Trailer Applications

Workshops use this relay type on 12V accessory switching circuits, including lighting, fans, horns and auxiliary equipment where the circuit design calls for a normally open 4 pin micro relay.
