Description

Overview

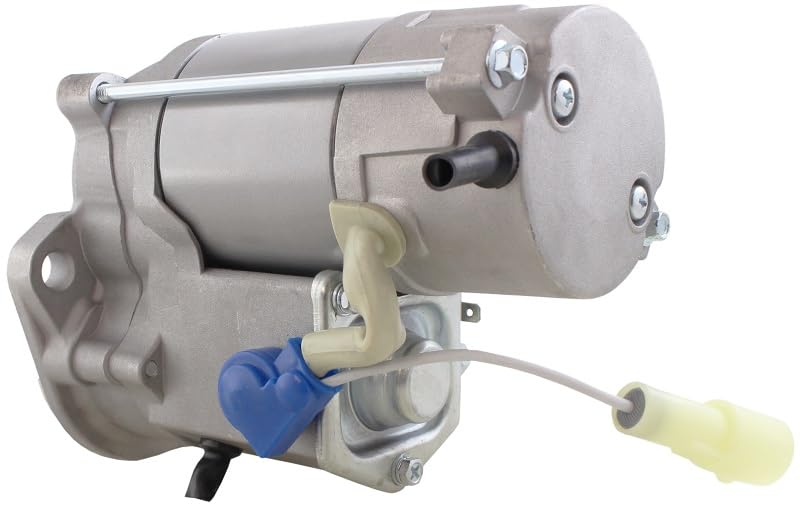

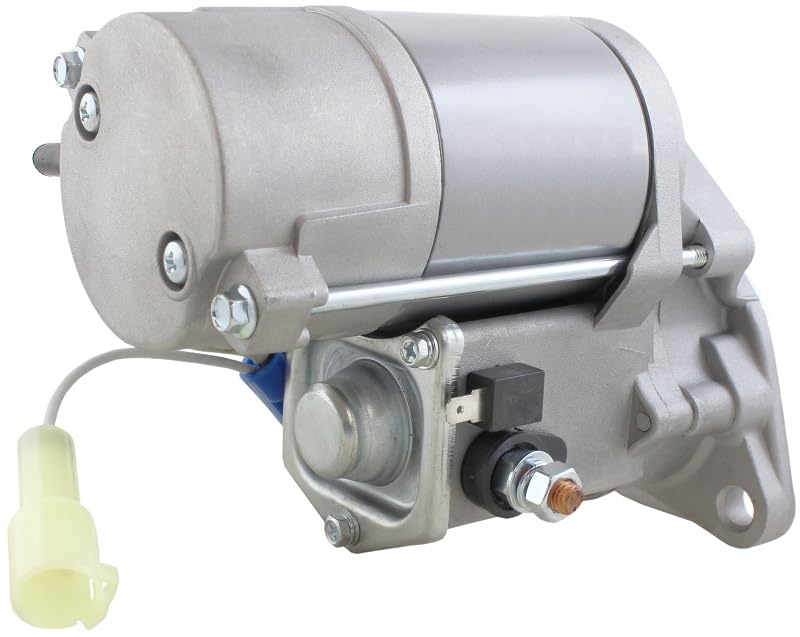

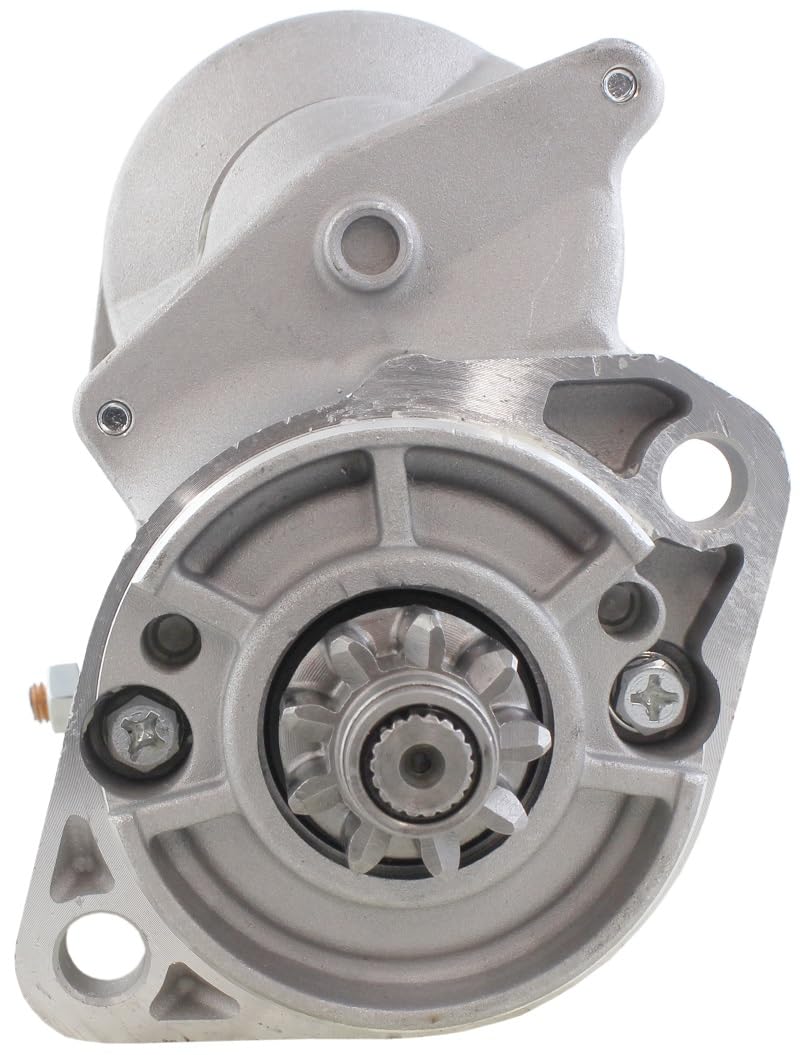

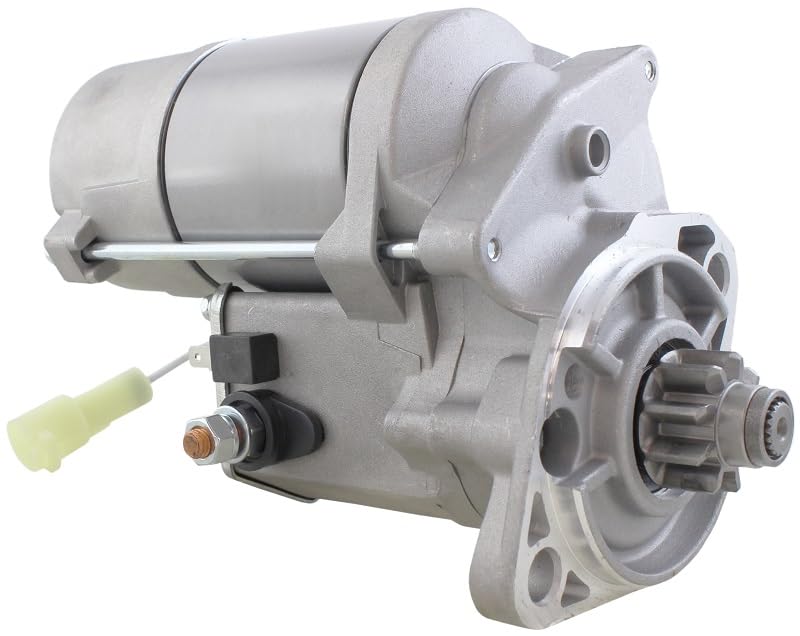

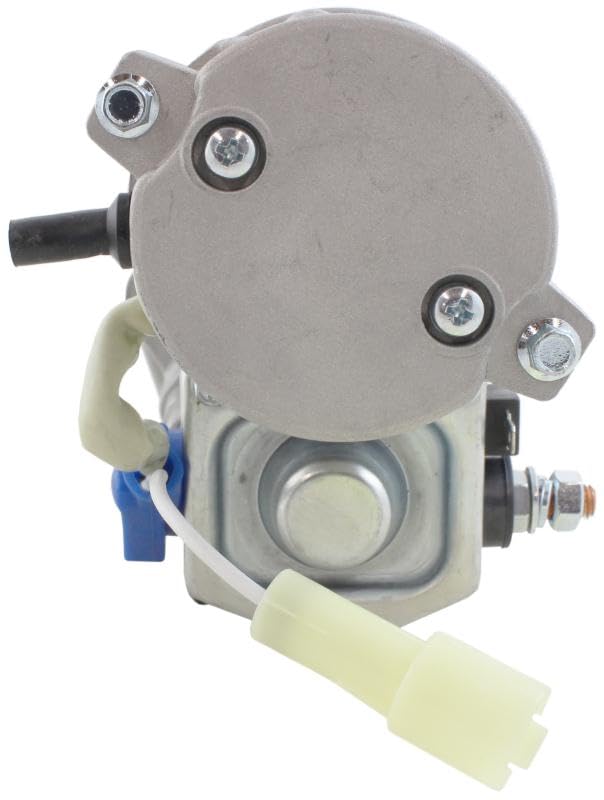

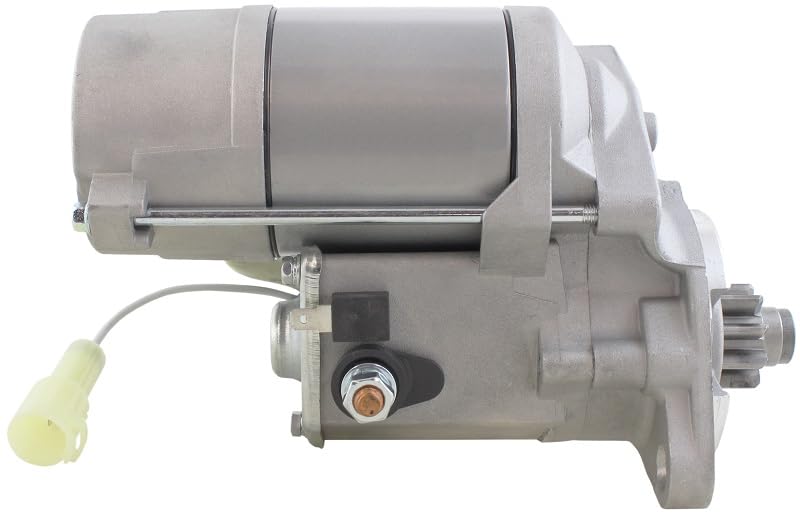

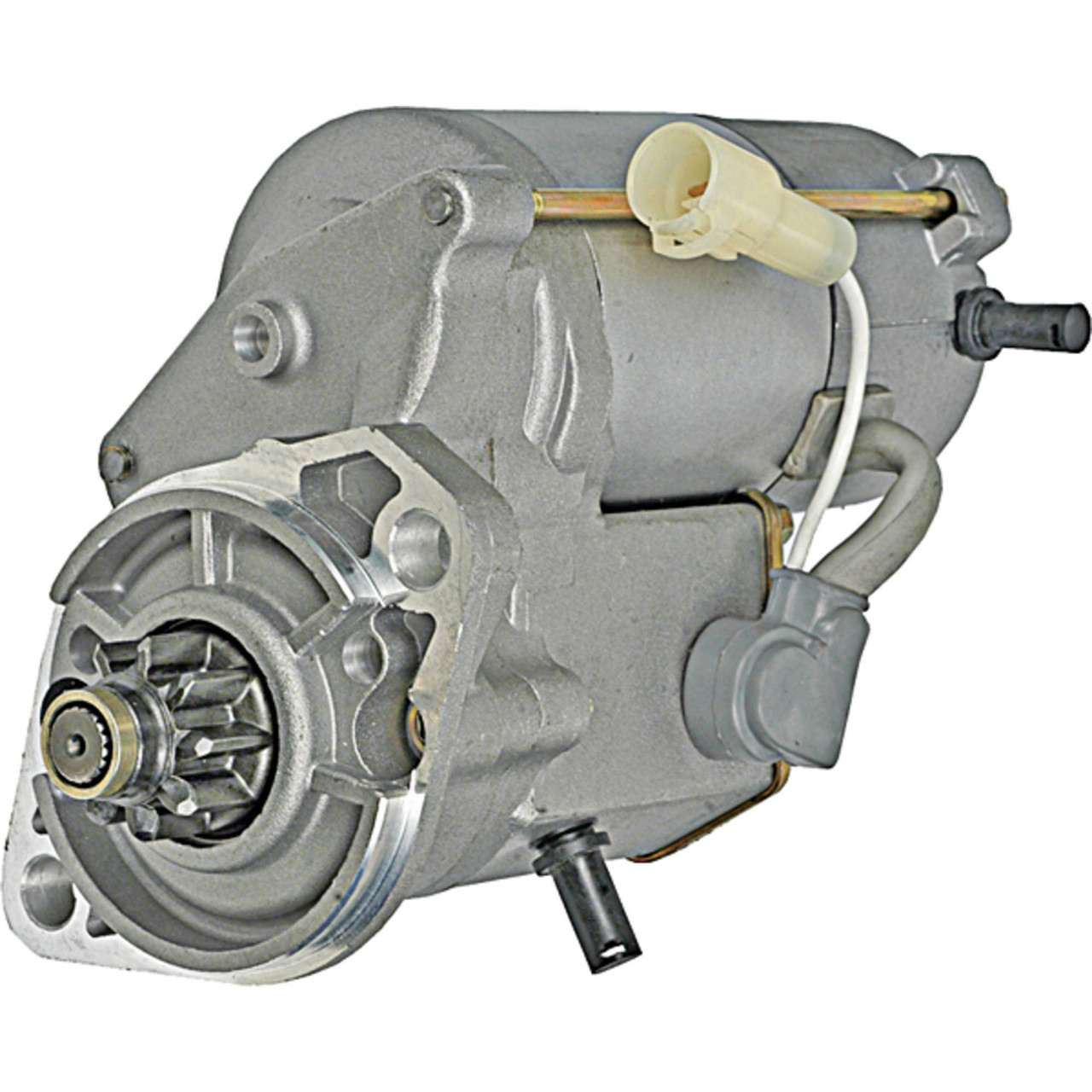

Carrier Starter Motor 12V 2.2kW suits Carrier Vector CT4-134 and D2203 diesel engines where a compact gear-reduction starter is required. It is used to crank the engine during start-up, making it a key replacement part when starting performance becomes unreliable. This starter also suits several Carrier trailer refrigeration platforms built around the Kubota CT4-134 family.

Features

• 12V gear-reduction starter for small diesel engine applications
• 9-tooth pinion with clockwise (CW) rotation for CT4-134 applications
• OSGR design for strong cranking performance
• 2-hole, unthreaded mounting pattern for the listed engine setups

Specifications and Materials

See the Delco Remy starter cross-reference page for replacement reference details.

Part number: CA-25-39316-00-AM.

This starter uses a 9-tooth pinion and CW rotation to suit CT4-134 starter drive requirements.

• System voltage: 12V
• Rated power: 2.2kW
• Starter type: OSGR
• Pinion teeth: 9

Compatibility and Fitment

Confirm the engine family, mounting pattern and solenoid terminal style before ordering. This starter suits Kubota CT4-134 and D2203 (V2203-DI) style engines used on Carrier Vector and related units, and it is designed for 12V starting systems.

Cross-reference numbers: 25-39316-00, 253931600, 25-39291-00, 253929100, CA-25-39291-00-AM, CA253929100AM, 93589.

Compliance and Safety

Isolate the battery before removal, as starter circuits carry high current. If the original starter failed because of poor wiring or earthing, correct that fault before fitting the replacement. After installation, check cranking speed and stop immediately if you hear pinion grind or poor engagement.

Trailer Applications

This starter commonly suits trailer refrigeration units using Kubota CT4-134-TV and CT4-134-DI engines, including Carrier Vector, X2 and Ultra XTC configurations. It may also suit selected Carrier models that share the CT4-114 and CT4-134 engine platform, so matching the engine code and mount style is important before purchase.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
