Description

Overview

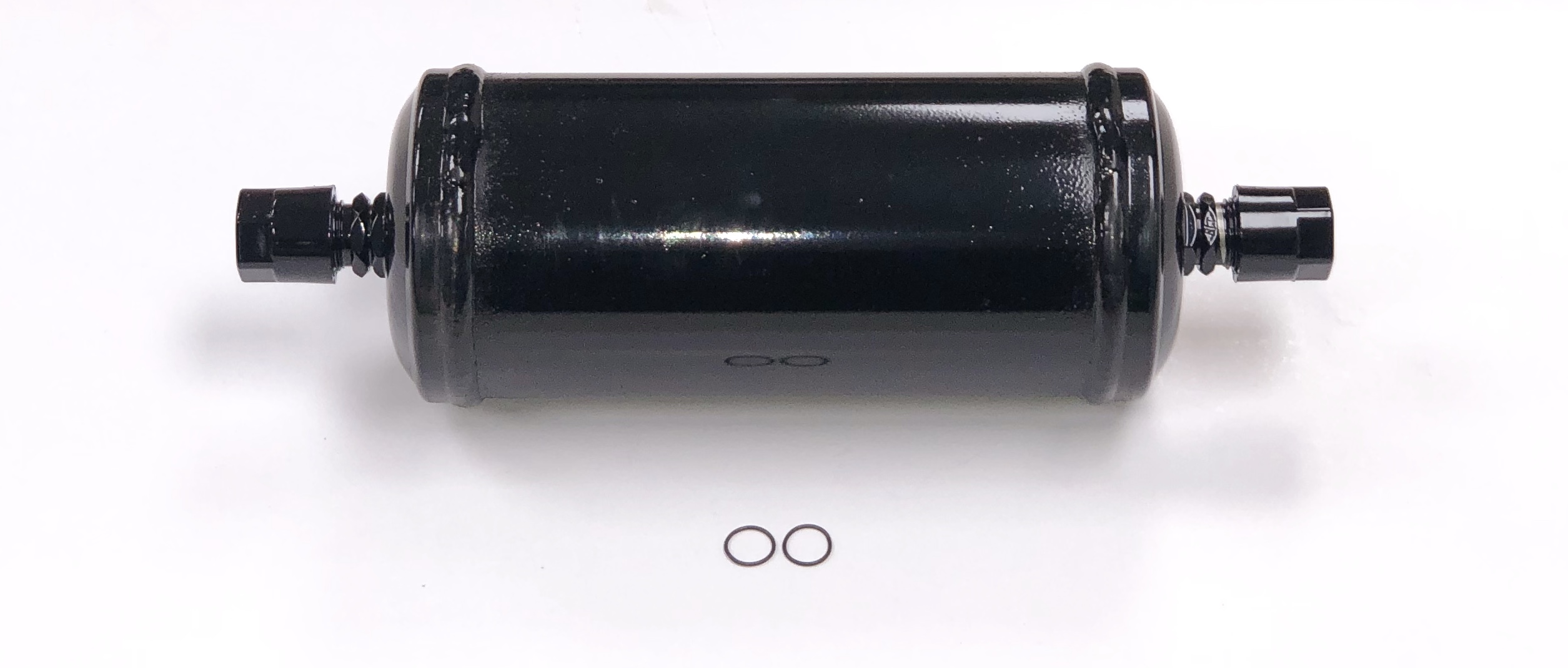

Carrier Filter Drier Ultra XTC Vector X2 is a replacement filter drier for selected Carrier Transicold transport refrigeration systems. It is used in the refrigeration circuit to manage moisture and contamination, helping maintain clean refrigerant flow and stable system operation. Match the installed drier and fitting specification before ordering, especially across different unit series and revisions.

Features

• 3/4-16 MF inlet and outlet connections with #08 fitting size
• 82mm x 255mm cylindrical body
• Designed for transport refrigeration service work
• Suits selected Carrier Ultra XTC, Vector, X2, 2500 and 6500 series applications

Specifications and Materials

Part number: CA-14-00209-00-AM.

Connection in: 3/4-16 MF (#08).

Connection out: 3/4-16 MF (#08).

Body size: 82mm x 255mm.

O-ring specification: #08 ORS, ID 12.42 x 1.78, 1/2” x 1/16”.

For part identification and service context, see the official Carrier service bulletin.

Compatibility and Fitment

Check the existing drier, fitting size and sealing arrangement before ordering. This filter drier suits selected Carrier Ultra XTC, Vector, X2, 2500 and 6500 series equipment, along with other compatible Carrier Transicold systems that use the same format and connection specification.

Cross-reference numbers: 14-00209-00, 140020900, 14-0020900, 14-00036-01, 140003601, 14-0003601, P-14-00209-00, P140020900, CA-14-00209-00, CA140020900, 42-00243-04, 420024304, CA-42-00243-04, CA420024304.

Compliance and Safety

Confirm unit compatibility before installation and replace the O-ring if the service procedure requires it. Once the circuit has been opened, evacuate and recommission the system to the unit maker’s service requirements.

Trailer Applications

This filter drier is used on trailer and transport refrigeration systems fitted with the listed Carrier unit families. It is a common replacement part during refrigeration service where the drier body, fitting size and sealing arrangement match the removed part.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
