Description

Overview

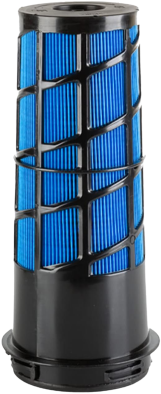

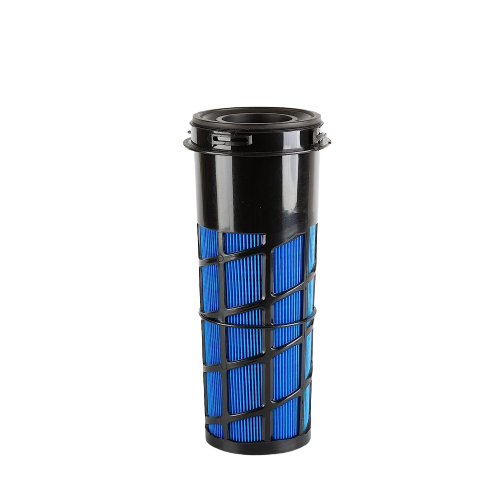

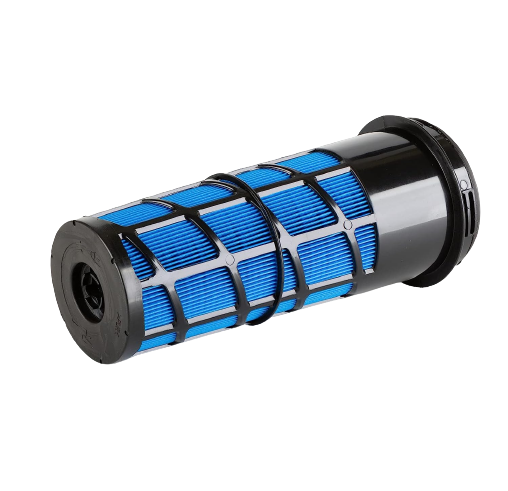

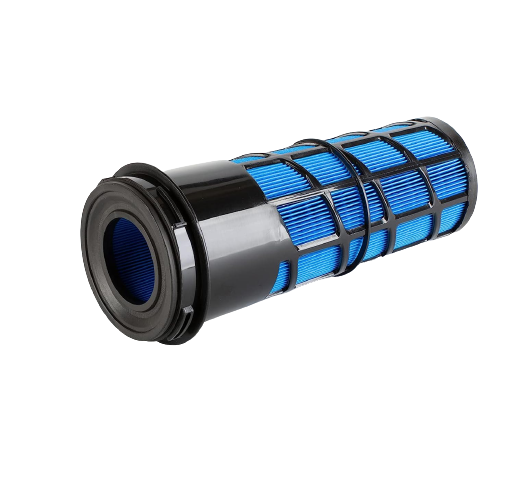

Carrier Air Filter Vector is a primary air filter with matching air cleaner liner for selected Carrier Transicold Vector, Ultra and X2 applications. It helps protect the engine intake system during routine service. Check the unit family, serial range and housing setup before ordering.

Features

• Primary air filter for selected Carrier Transicold refrigeration units
• Includes the matching air cleaner liner
• Listed for later Ultra XT and Ultra XTC applications
• Also suits selected Vector 6500, Vector 6600MT, Vector 6500 Hybrid and X2 units

Specifications and Materials

Primary air filter with matching air cleaner liner for selected Carrier applications.

Part number: CA-30-00471-20-AM.

Listed for Ultra XT and Ultra XTC units from serial number LAA90946117 and later, Carrier Vector 6500, Carrier Vector 6600MT with CT4-134DI engine, Carrier Vector 6500 Hybrid, and selected X2 1800, X2 1800MT, X2 2100, X2 2100A, X2 2100R, X2 2500A and X2 2500R units after the same serial break. See the official Carrier service parts list for engine application context.

Compatibility and Fitment

Match the filter to the existing housing and unit serial range before ordering, especially on XT, XTC and X2 applications. Inspect the end cap, liner and housing sealing surfaces during service, as worn air cleaner hardware can affect seal quality.

Cross-reference numbers: 30-00471-20, 300047120, 30-00471-33, 300047133, 30-00471-37, 300047137, CA-30-00471-37-AM, CA300047137AM, 30-00471-11, 300047111, CA-30-00471-11-AM, CA300047111AM.

Compliance and Safety

Shut the unit down before service, then remove the old element carefully so dirt does not enter the intake side. If the housing shows dust bypass, clean the sealing surfaces and inspect the liner and related hardware before fitting the replacement filter.

Trailer Applications

Used in refrigerated trailer servicing where the listed Carrier unit families remain in operation. Suits scheduled engine air filter replacement on compatible Ultra, Vector and X2 equipment.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers keeps serial break and cross-reference details clear, which matters when matching air filters across similar Carrier platforms. Browse Carrier parts at ICS Trailers in the Carrier category.
