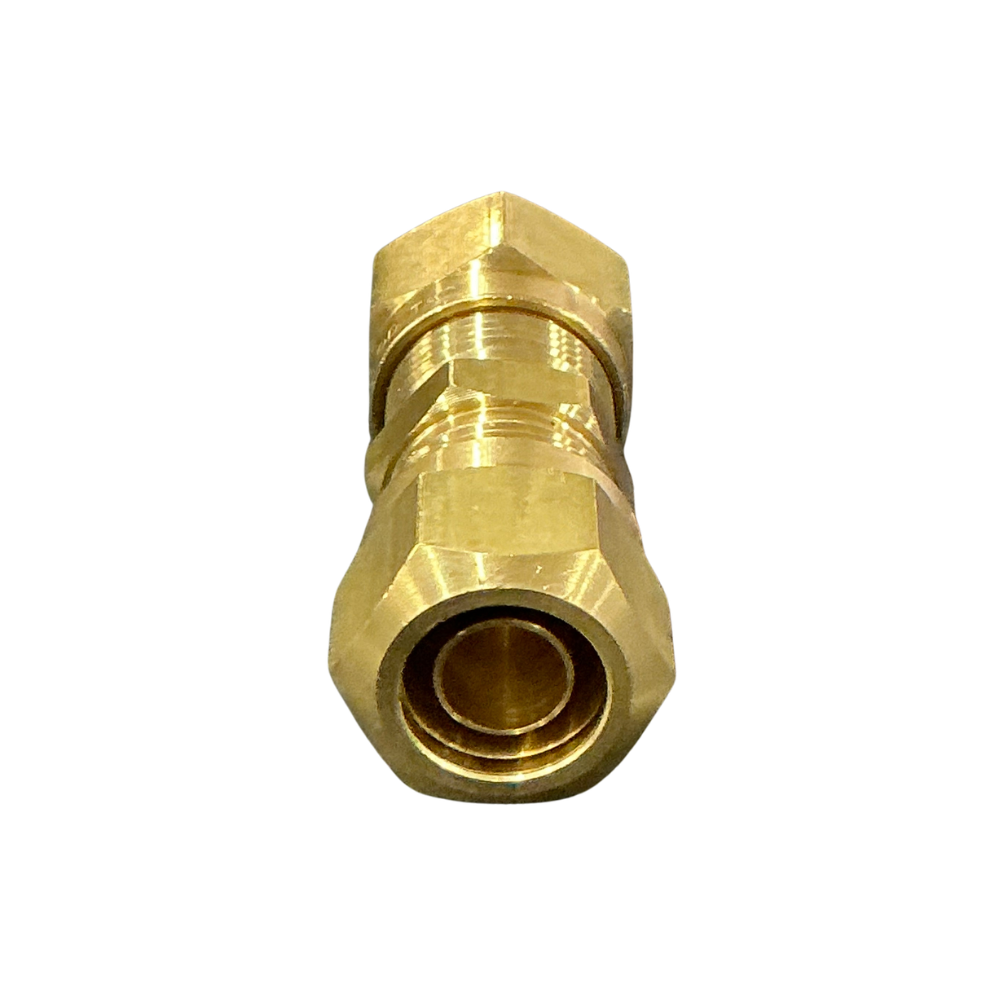

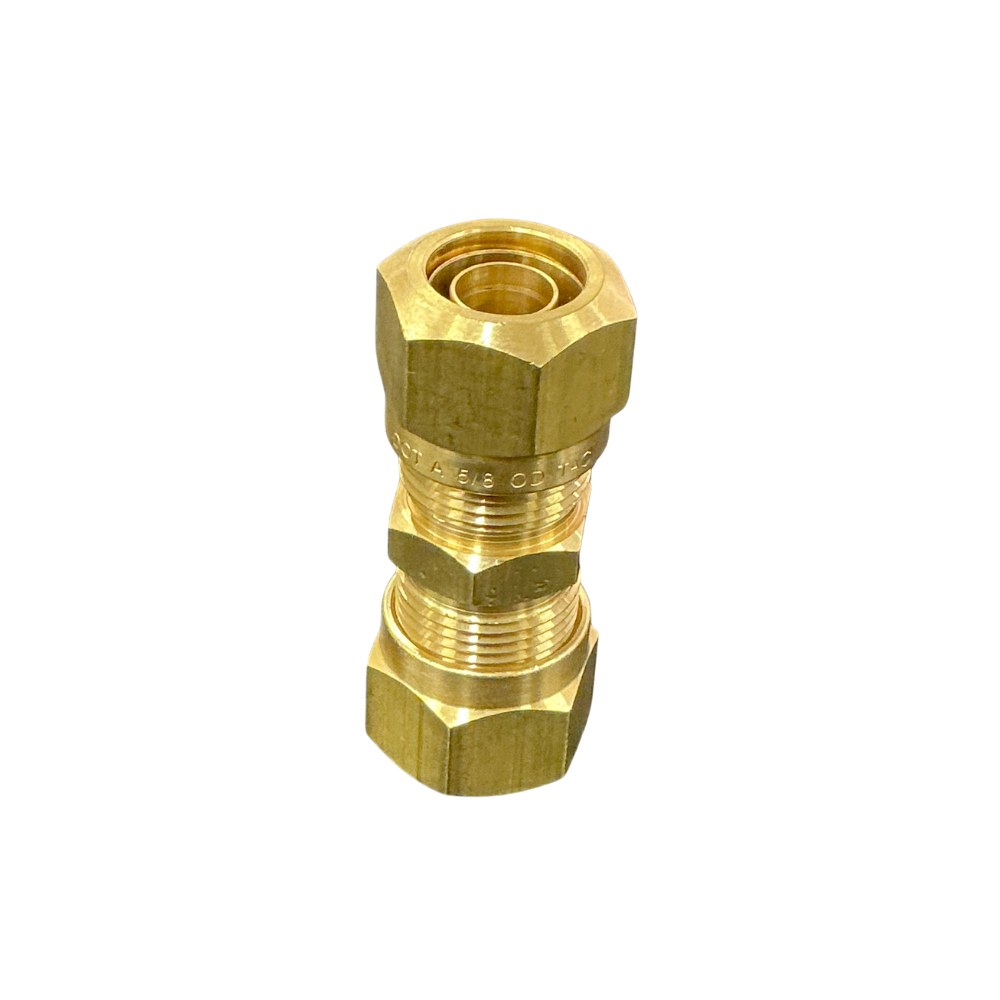

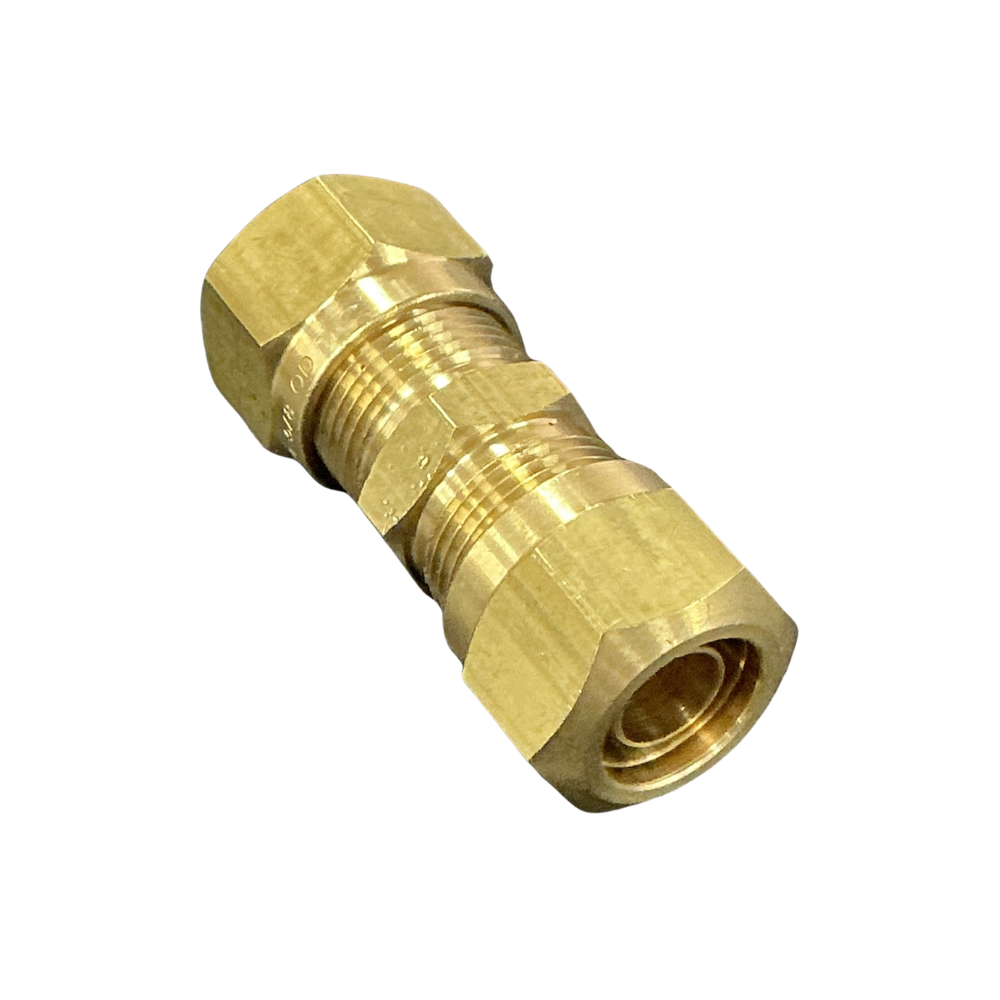

Straight Union 5/8in Nylon Tube Fitting
Straight Union 5/8in Nylon Tube Fitting
$14.00
The 5/8in air brake union joins two equal-size J844 nylon air-brake tubes in a straight brass compression connection, with two nuts, two olives and two preassembled inserts included for a complete repair.
Part number 36-004-10.
Description
Overview
The 5/8in air brake union joins equal lengths of 5/8in outside-diameter nylon air-brake tube in a straight compression connection. Both ends use the same size, so it repairs or extends a line without changing diameter.
Features
- Straight equal-union configuration
- Compression connections at both ends
- Brass body for J844A and J844B nylon tube
- Includes two nuts, two olives and two preassembled tube inserts
Specifications and Materials
Product type: #4NA straight tube union.
Connections: 5/8in tube to 5/8in tube.
Nut thread: 13/16in x 18.
Pressure rating: up to 200 PSI or 1400 kPa.
Temperature range: 0°C to 120°C.
Construction: D.O.T.-approved brass compression fitting.
Includes: two nuts, two olives and two preassembled tube inserts.
Part number: 36-004-10.
Review the official NTA and 1400 Series air-brake fitting guide
Compatibility and Fitment
Confirm both lines measure 5/8in across the outside diameter. Also check the tube marking because 5/8in imperial and 16mm metric tube are not interchangeable. Do not confuse tube size with a 5/8in pipe thread. This 5/8in air brake union has equal compression ends and no NPT or BSP port.
These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 1462×10, 1462X10, GP62CDOT10, 1462-10-10, 14621010, S762AB-10, S762AB10, 177.146210, 177146210, 177.8048, 1778048, 462-10, 46210, TH262H, 1462-10, 146210, NY62-10, NY6210, G32400-0010, G324000010, G32400-1010, G324001010, 38022, 62NTA-10, 62NTA10, N62-10, N6210, 1362-10, 136210, 85014, 962-10, 96210, 016200, 11204, 90663
Related Parts
Check these replacement components before ordering.
| Use | Part number | Part type |
|---|---|---|
| Replacement component | 36-001-10 | 5/8in tube olive |
| Replacement component | 36-002-10 | 5/8in tube nut |
| Replacement component | 36-099-10 | 5/8in tube insert |
Compliance and Safety
Depressurise the system before opening the line. Cut each tube square and remove burrs or damage. Seat it fully over the insert before tightening the nut. Then restore pressure gradually and leak-test both joints.
Trailer Applications
Workshops fit this union to replace damage, extend a 5/8in nylon line or reconnect equal-size tube ends. The straight-through body maintains the same tube diameter.
Cross-reference and Suitability
This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
| 1462×10 | 1462X10 | GP62CDOT10 |
| 1462-10-10 | 14621010 | S762AB-10 |
| S762AB10 | 177.146210 | 177146210 |
| 177.8048 | 1778048 | 462-10 |
| 46210 | TH262H | 1462-10 |
| 146210 | NY62-10 | NY6210 |
| G32400-0010 | G324000010 | G32400-1010 |
| G324001010 | 38022 | 62NTA-10 |
| 62NTA10 | N62-10 | N6210 |
| 1362-10 | 136210 | 85014 |
| 962-10 | 96210 | 016200 |
| 11204 | 90663 |
Why Choose ICS Trailers
ICS Trailers supplies matching 5/8in olives, nuts and inserts. If line size is uncertain, send the tube diameter, markings and clear photos to distinguish 5/8in imperial tube from 16mm metric tube.
