45° Swivel Push-In Elbow 3/8″ Tube x 1/4 NPT Male
45° Swivel Push-In Elbow 3/8″ Tube x 1/4 NPT Male
$17.00

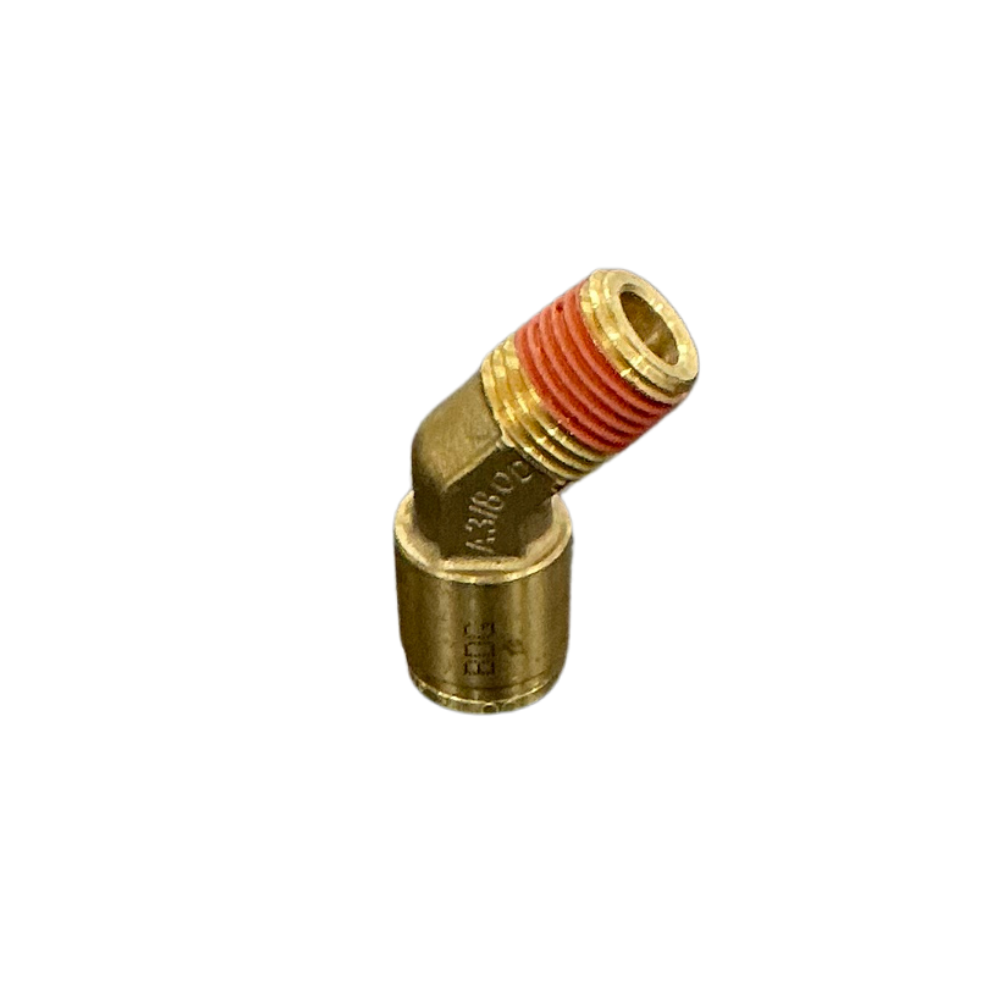

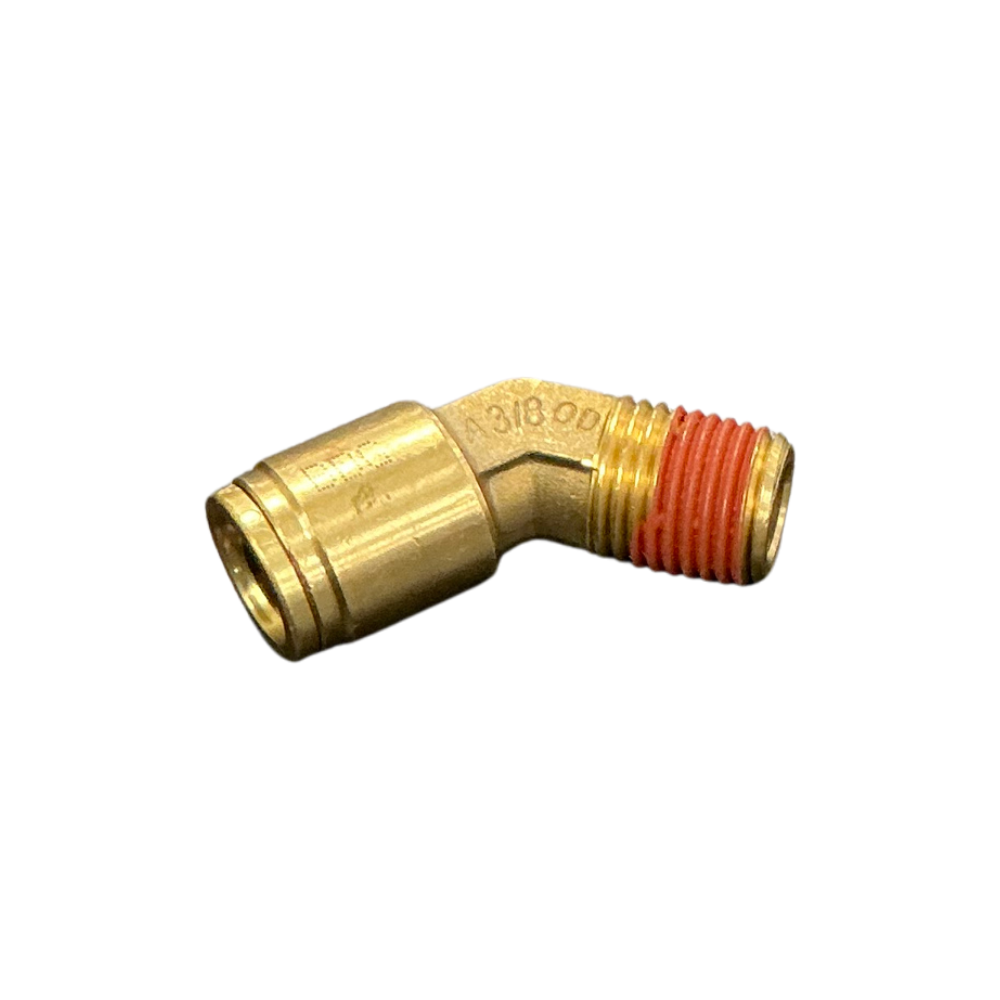

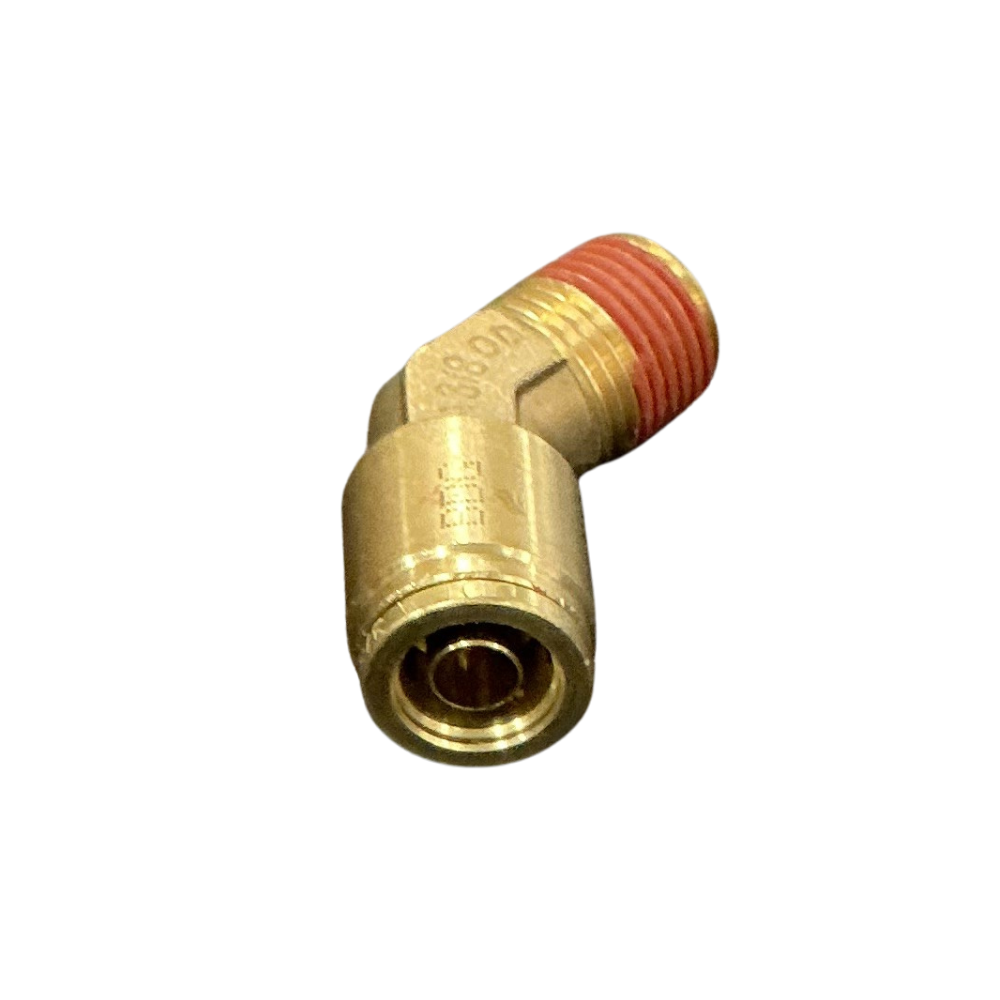

45° swivel push-in elbow connects 3/8-inch OD nylon tube to a 1/4 NPT male port and allows the outlet position to be aligned during installation.
Part number DQ54DOTS0604.
Description
Overview
The 3/8 push-in elbow connects 3/8-inch OD nylon air tube to a 1/4 NPT male port and directs the line through 45 degrees. Its swivel base lets the outlet be aligned during installation where a fixed fitting would point the tube towards a valve, bracket or chassis member.
Features
- 45-degree swivel male elbow
- Push-in collet for 3/8-inch OD nylon tube
- 1/4-18 NPTF male pipe thread
- Brass body with a reusable tube connection
Specifications and Materials
Product type: DOT push-to-connect air brake fitting. Tube connection: 3/8-inch OD. Thread connection: 1/4-18 NPTF male. Configuration: 45-degree swivel male elbow. Material: brass.
Part number: DQ54DOTS0604.
Review the manufacturer fitting specifications
Compatibility and Fitment
Select this 3/8 push-in elbow only when both connection sizes match. Measure the tube across its outside diameter, confirm the receiving port is 1/4 NPT rather than BSP or metric, and check outlet clearance. Use the swivel to set the installation position, not as a continuously rotating joint.
These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 1880X6X4S, 35-S540604, 35S540604, AQ54-DOTS-6X4, AQ54DOTS6X4, 1880X6S, 179PTC-6-4, 179PTC64, PL1374-6B, PL13746B, S254PMT-6-4, S254PMT64
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Fixed version | DQ54DOT0604 | 3/8-inch tube x 1/4 NPT 45-degree elbow |
| Smaller thread version | DQ54DOTS0602 | 3/8-inch tube x 1/8 NPT swivel elbow |
| Larger thread version | DQ54DOTS0606 | 3/8-inch tube x 3/8 NPT swivel elbow |
Compliance and Safety
Depressurise the circuit before installation. Cut the nylon tube square, remove scoring or deformation and push it fully into the collet. Apply suitable sealing practice to the male thread, then pressure-test the joint and confirm secure tube retention before returning the trailer to service.
Trailer Applications
This fitting suits compatible trailer air brake, air suspension and auxiliary pneumatic lines where 3/8-inch nylon tube approaches a 1/4 NPT port at a shallow angle. The swivel base helps position the line without forcing a sharp bend beside the connection.
Cross-reference and Suitability
This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
| 1880X6X4S | 35-S540604 | 35S540604 |
| AQ54-DOTS-6X4 | AQ54DOTS6X4 | 1880X6S |
| 179PTC-6-4 | 179PTC64 | PL1374-6B |
| PL13746B | S254PMT-6-4 | S254PMT64 |
Why Choose ICS Trailers
ICS Trailers supplies imperial push-in fittings in alternate tube sizes, thread sizes and elbow configurations. Send photos of the old fitting, port and tube markings if the connection is difficult to identify.
Browse more Air Fittings
Online prices apply to website orders only. In-store pricing may differ.
