Description

Overview

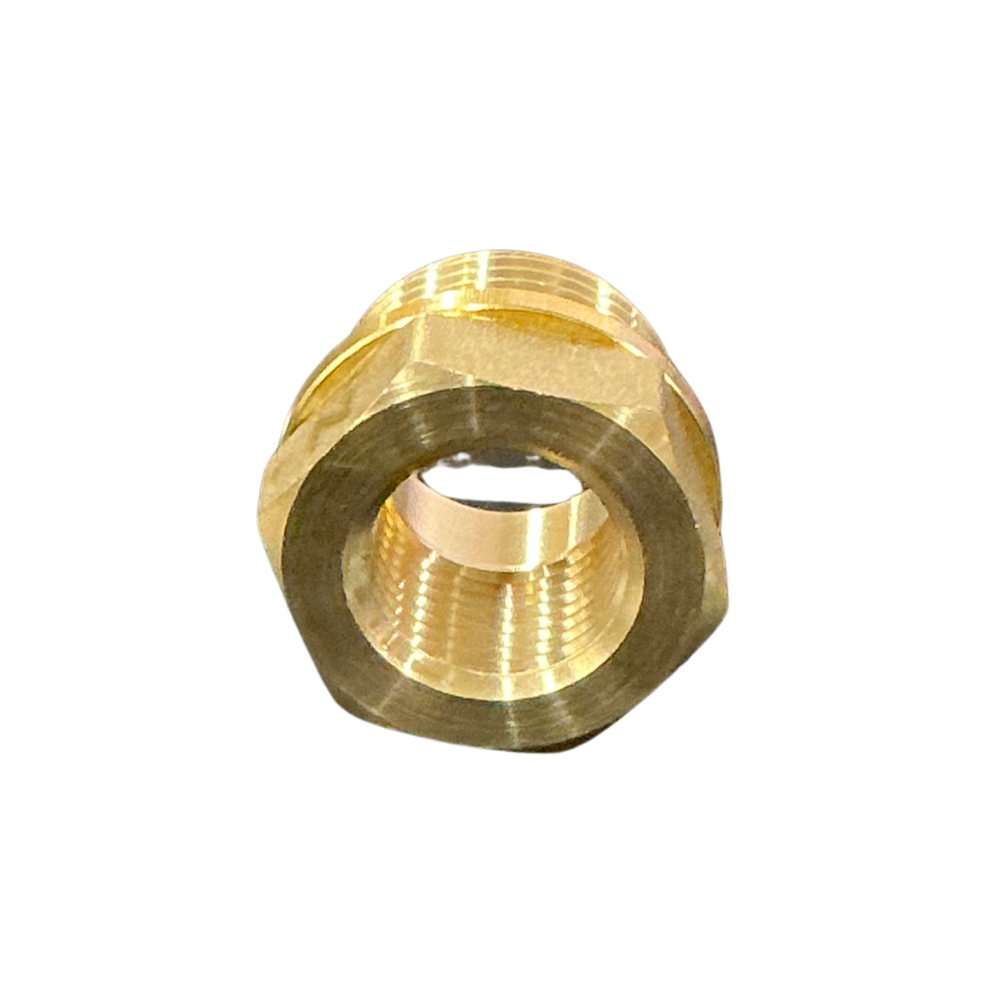

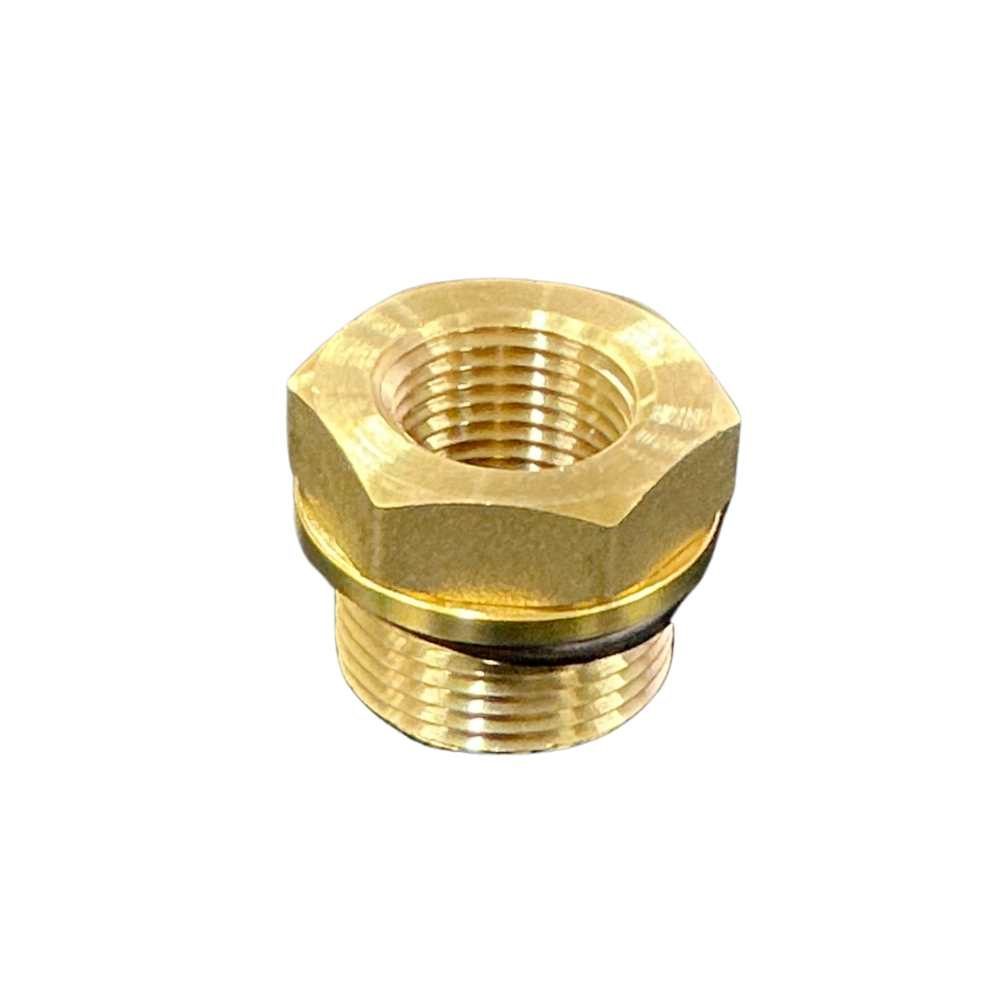

3/8 NPT Female to M22 Male Adaptor joins an imperial female pipe-thread component to an M22 metric male port in truck and trailer pneumatic systems. Its straight brass reducing-bush design suits repairs where different thread standards must connect without an elbow or extra hose joint.

Features

• 3/8 female pipe thread to M22 x 1.5 male metric thread
• Compact straight brass adaptor configuration

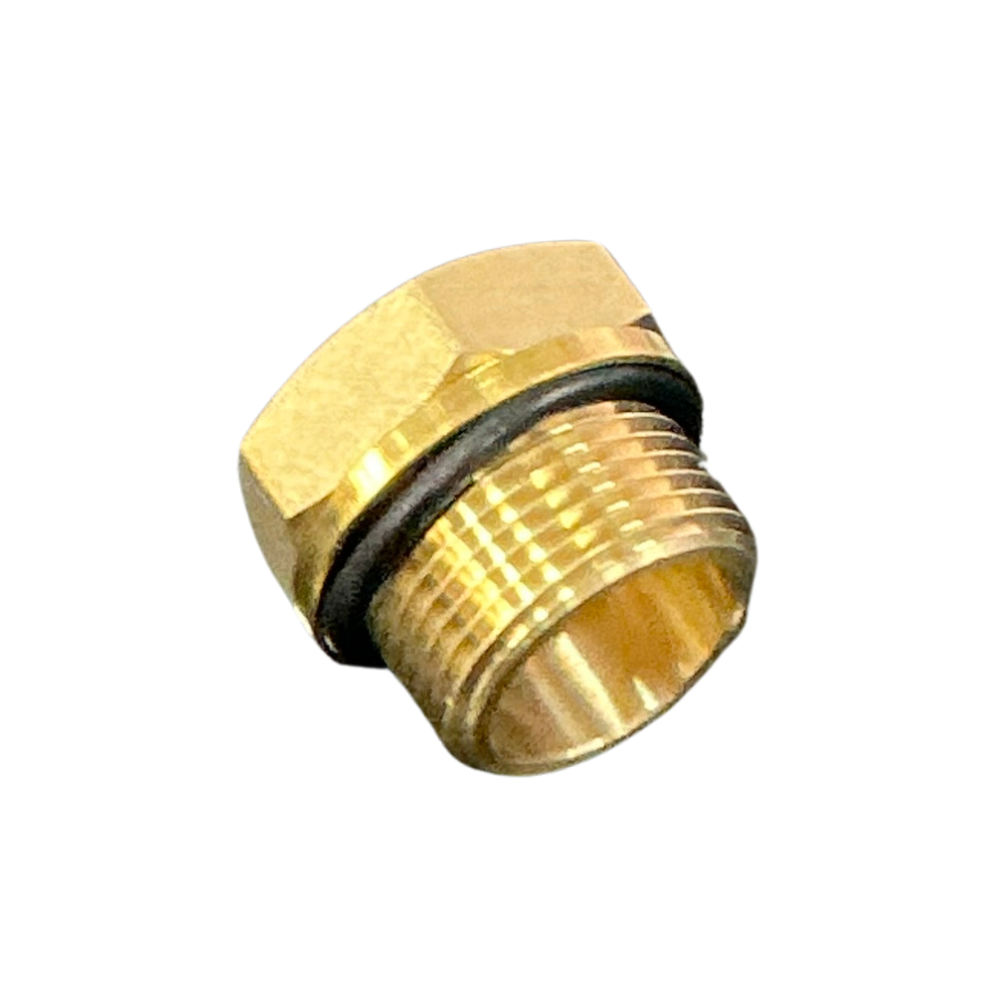

• Includes a 22mm thrust washer and O-ring on the metric side
• Provides an imperial-to-metric transition for pneumatic assemblies

Specifications and Materials

The fitting has a 3/8 NPT female connection and an M22 x 1.5 male connection. The supplied thrust washer supports the metric-side joint, while the included O-ring seals against the matching face. Confirm the mating component has the correct sealing surface.

Part number: 0324-M22EN06A.

See the manufacturer adaptor guide

Compatibility and Fitment

Confirm both thread standards before ordering the 3/8 NPT Female to M22 Male Adaptor. NPT and BSP threads are not interchangeable, and the metric side must match an M22 x 1.5 thread with an O-ring sealing face. Compare the old fitting, port depth and surrounding clearance before installation.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. GP-072-06M22, GP07206M22, GP-072-06M22A, GP07206M22A, 3200X6XM22

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Depressurise the pneumatic system before removing the old fitting. Inspect the port face and seal, then start both threads by hand to prevent cross-threading. Tighten without distorting the washer or overloading the brass body, and leak-test the joint before returning the trailer to service.

Trailer Applications

Workshops use this adaptor where air-brake, air-suspension or pneumatic control components require a 3/8 imperial connection on one side and an M22 metric port on the other. It can also connect valves, reservoirs and control assemblies while retaining the existing thread arrangement.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies air fittings, connectors, valves and pneumatic service parts for trailer repairs. Send a photo of the old fitting, thread measurements and sealing face if you need help separating a close M22, NPT or BSP variation.
