Description

Overview

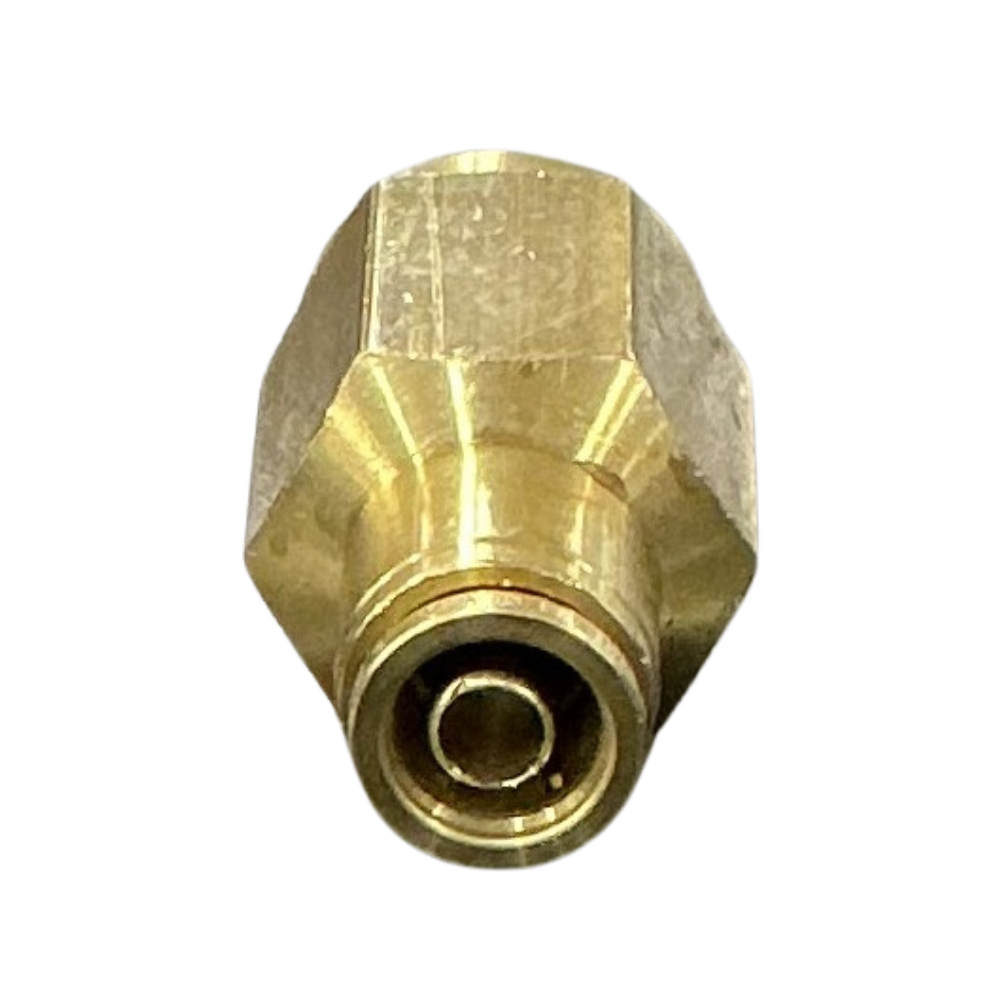

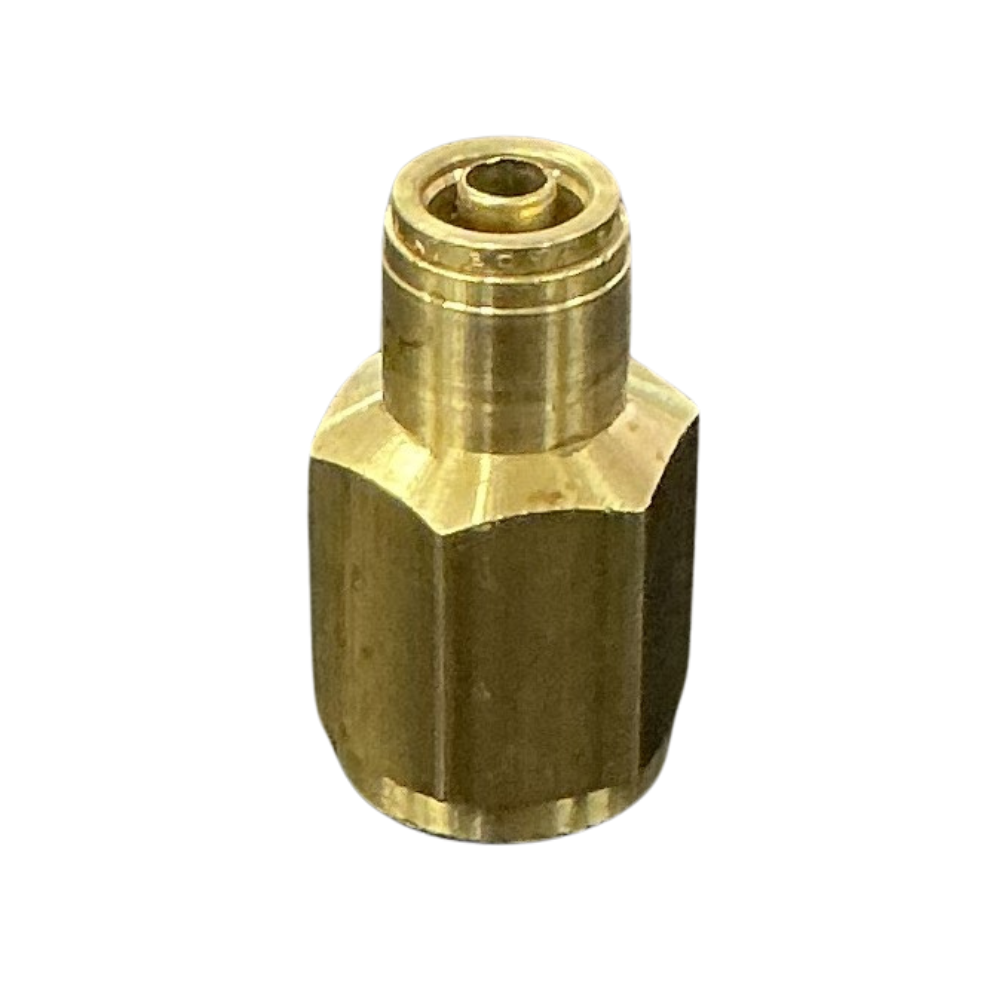

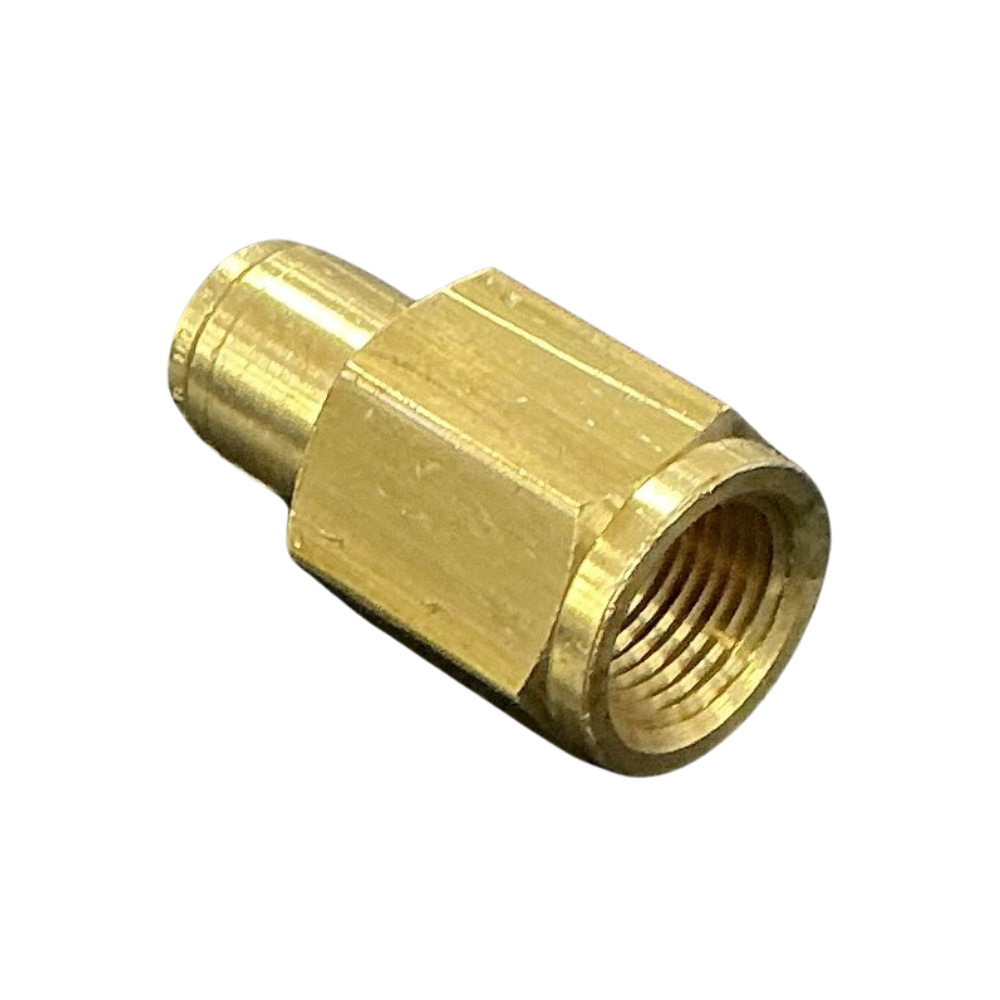

The 3/8 x 3/8 NPTF female connector joins 3/8-inch OD nylon air-brake tube to a 3/8 NPTF male-threaded component. Its straight brass body maintains the tube direction. Unlike its 1/4-thread counterpart, this fitting accepts the larger male port.

Features

• Push-in collet grips 3/8-inch OD tube.
• Female 3/8 NPTF pipe thread.
• Brass hex body for tightening.
• Integral tube support and O-ring seal.

Specifications and Materials

The assembled brass fitting incorporates its release collet, tube support and sealing components. The push-in end needs no separate compression nut or sleeve.

Part number: DQ66DOT0606.

See the manufacturer DOT air brake fitting chart

Compatibility and Fitment

Measure nylon tube OD and confirm the 3/8 NPTF male mating thread. Do not confuse this connector with 3/8 BSP, male-threaded connectors or the 1/4 NPTF female version.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 35-660606, 35660606, AQ66-DOT-6X6, AQ66DOT6X6, 1866X6X6, 3114 60 18DOT, 31146018DOT, 02466-0606, 024660606, 2466X6X6, 266PPDOT-6C, 266PPDOT6C, DOT66-6-6, DOT6666, 66PMT-6-6, 66PMT66, NP66-6-6, NP6666, PC1466-6C, PC14666C, PL1366-6C, PL13666C, 87048, 91461, 95435520M, 966-66, 96666, S66PMT-6-6, S66PMT66, 966-6-6PXDOT, 96666PXDOT

Related Parts

Compare alternate straight connectors for the same tube diameter.

Compliance and Safety

The DOT fitting family meets FMVSS 571.106 and SAE J1131 requirements. Depressurise the air system, cut tube squarely and insert it fully. Check retention, then pressurise and leak-test both joints.

Trailer Applications

The 3/8 x 3/8 NPTF female connector suits compatible truck and trailer air-brake valves and auxiliary pneumatic ports. Its straight design keeps 3/8-inch nylon air tubing aligned with the male connection.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies imperial trailer air fittings. For worn connectors, send the tube OD and male thread details to help identify the correct connection.
