Description

Overview

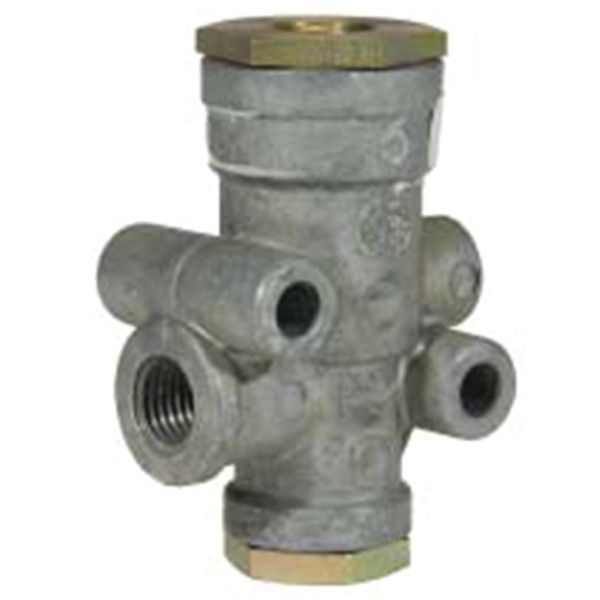

The SV-1 synchronising valve provides on off pneumatic control to delay or sequence devices in trailer air brake systems. The SV-1 synchronising valve suits applications where a defined pressure signal should open, close, then exhaust a circuit reliably. Consequently, fleets gain repeatable timing and simpler plumbing for staged functions.

Features

• Non-graduating on off action for clear, binary control
• Air-signal operated, suitable for automatic or non-automatic circuits
• Compact body suits tight mounting locations on trailers and dollies
• Standard pipe threads simplify integration with existing fittings

Specifications and Materials

Part number: AB8357.

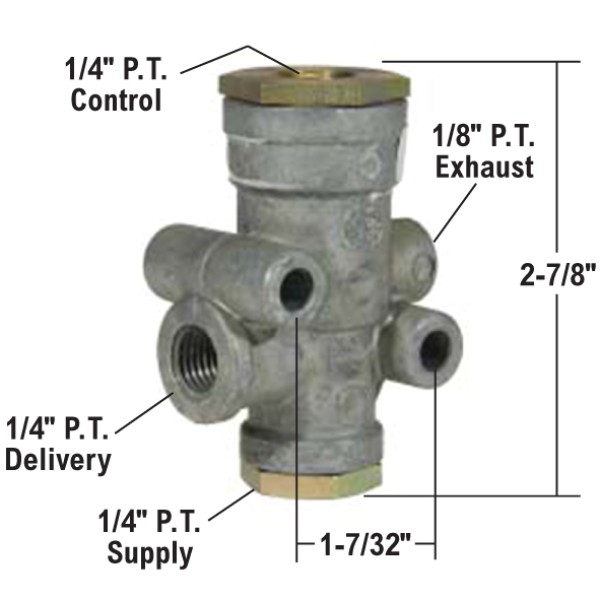

Ports: supply 1/4″ NPT, delivery 1/4″ NPT, control 1/4″ NPT, exhaust 1/8″ NPT. Typical use: delay or sequence an auxiliary air circuit in a heavy-vehicle braking system. For technical background and service data, see the Bendix service data sheet SD-03-4020

Compatibility and Fitment

This cross-reference listing means this valve is a suitable replacement for the part numbers and applications shown. Some changes in air line plumbing may be required.
283700N, 28370

Compliance and Safety

Install and torque fittings to pneumatic standards, then leak-test with soapy water or an approved method. Finally, verify brake timing and release characteristics in a safe area before returning the vehicle to service.

Trailer Applications

Use the SV-1 synchronising valve to time lift-axle control, interlock release, or accessory actuation that depends on a defined pressure rise. Additionally, it can act as an automatic controller when supply and control are connected, enabling simple logic without electrical wiring.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
