Long Tail Poly-U Air Coil Pair 1/2″ BSPT 4.6m
Long Tail Poly-U Air Coil Pair 1/2″ BSPT 4.6m
$275.00

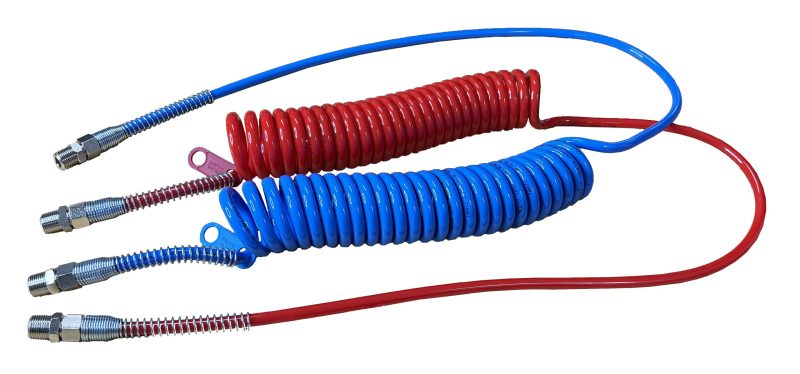

Long tail Poly-U air coil pair for trailer air brake connections, supplied as red and blue coils with 1/2″ BSPT compression ends, stainless compression fittings, 1m long tail and 4.6m working length for service and emergency lines.
Part number 200-203.
Description
Overview
Long tail Poly-U air coil pair connects prime mover and trailer air lines with a red supply line and blue control service line. The long tail layout gives extra reach at the truck end, while the 4.6m working length suits standard heavy trailer air connection setups.
Features
- Red and blue paired air coils for supply and control service air lines.
- 1/2″ BSPT compression ends with metal spring guards.
- 12mm OD x 7.6mm ID polyurethane tube.
- Anti-kink, UV resistant, abrasion resistant and anti-static construction.
Specifications and Materials
This long tail Poly-U air coil pair uses polyurethane tube with stainless steel compression fittings, olive and insert. The coils handle a temperature range from -40°C to 75°C, so they suit exposed trailer air line service across hot, cold and wet conditions.
Part number: 200-203.
For manufacturer product details, see the official Trail-Link air coil product page
Compatibility and Fitment
Check the trailer setup for 1/2″ BSPT compression air fittings, 12mm tube size and the required tail length before ordering. Match blue to the control service line and red to the supply emergency line, then confirm there is enough travel for turning, articulation and suspension movement.
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Related version | 200-203-1/4″ | 1/4″ BSPT long tail air coil pair |
| Fitting kit | 200-1/2″-FTG | 1/2″ air fitting kit |
| Short reach version | 200-003 | Short reach air coil pair |
| Short tail version | 200-103 | Short tail air coil pair |
| Extended reach version | 200-103-7M | 7m air coil suzi pair |
| Swivel fitting | 200-1/2INCH-1/2INCH-SWIVEL | 1/2″ to 1/2″ swivel fitting |
Compliance and Safety
Inspect both coils for rubbing, cuts, sagging, stretched sections and damaged fittings during service. If the coil drags on checker plate, pulls tight on turns or no longer recoils cleanly, replace it before it damages the air line connection.
Trailer Applications
Workshops fit this long tail Poly-U air coil pair on heavy trailer air line connections where a red and blue paired coil set keeps the brake air supply and control service lines easy to identify. The 1m long tail helps reach truck-mounted connection points without forcing the coil to sit under tension.
Why Choose ICS Trailers
ICS Trailers can help match air coils, fittings and trailer connection parts against the existing setup so the replacement suits the job, not just the part name. Browse more parts in Air Brake Parts
