BPW Disc Spring Brake Chamber 15/24 LH

Amelia Varapodio on 25/05/2026

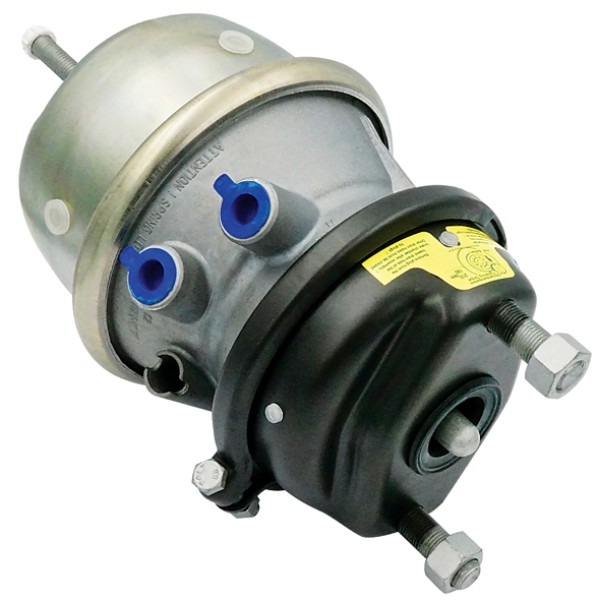

BPW disc spring brake chamber 15/24 left hand

BPW Disc Spring Brake Chamber 15/24 LH

$210.00

BPW disc spring brake chamber for left-hand disc brake positions, with 15/24 size, M16 x 1.5 ports, included fixing nuts and aftermarket or genuine options to match BPW axle brake chamber orientation during air brake service.

Part number AB1146.

Quick Quote

SKU: AB1146 Category: Tags: , , , , , , , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

BPW disc spring brake chamber applies service and parking brake force on left-hand BPW disc brake axle positions. The 15/24 chamber size, M16 x 1.5 ports and handed configuration make it important to match the removed chamber before ordering.

Features

  • 15/24 disc spring brake chamber for BPW left-hand applications.
  • M16 x 1.5 air ports for matching the existing brake pipe setup.
  • Available in aftermarket and genuine options.
  • Includes fixing nuts for chamber installation.

Specifications and Materials

Part number: AB1146.

This BPW disc spring brake chamber uses a diaphragm-diaphragm 15/24 configuration for disc brake axle service. It matches left-hand chamber positions where the mounting orientation, port thread and chamber size align with the original unit.

The chamber suits M16 x 1.5 port connections and BPW 15/24 disc brake cylinder layouts. Also check the brake hose routing and mounting clearance before fitting, because chamber hand and port position affect installation.

See the BPW brake cylinder technical guide

Compatibility and Fitment

Match the left-hand position, 15/24 size, M16 x 1.5 ports and BPW disc brake application before ordering. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 0544439020, 05.444.39.02.0

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Related version AB1146G Genuine left-hand chamber option
Opposite side AB1145 Right-hand chamber
Opposite side AB1145G Genuine right-hand chamber option
Mounting kit 05.801.21.51.0 15/24 chamber mounting kit



Compliance and Safety

Do not dismantle the spring brake section. Instead, replace the complete chamber if the sealed unit is faulty, and check the hose, fittings, mounting face and pushrod area before the trailer returns to service.

Trailer Applications

Workshops fit the BPW disc spring brake chamber during BPW disc brake axle service where a 15/24 left-hand spring brake chamber has failed, leaked or worn at the mounting points. After installation, confirm brake operation and release before road use.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

0544439020 05.444.39.02.0



Why Choose ICS Trailers

ICS Trailers supplies air brake components for heavy trailer repairs, fleet maintenance and BPW disc brake axle service. When replacing a chamber, check the opposite side and brake hose condition so the axle remains balanced.

Browse more Air Brake Parts

Online prices apply to website orders only. In-store pricing may differ.
