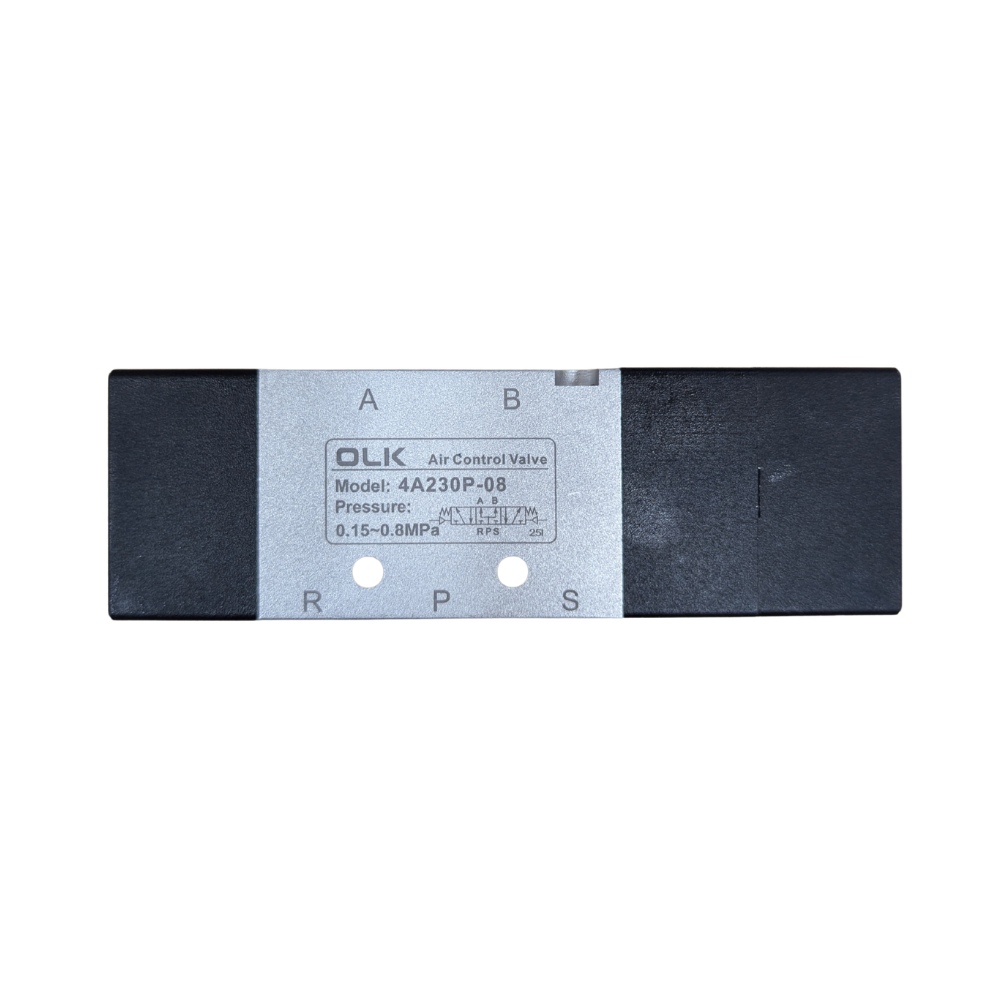

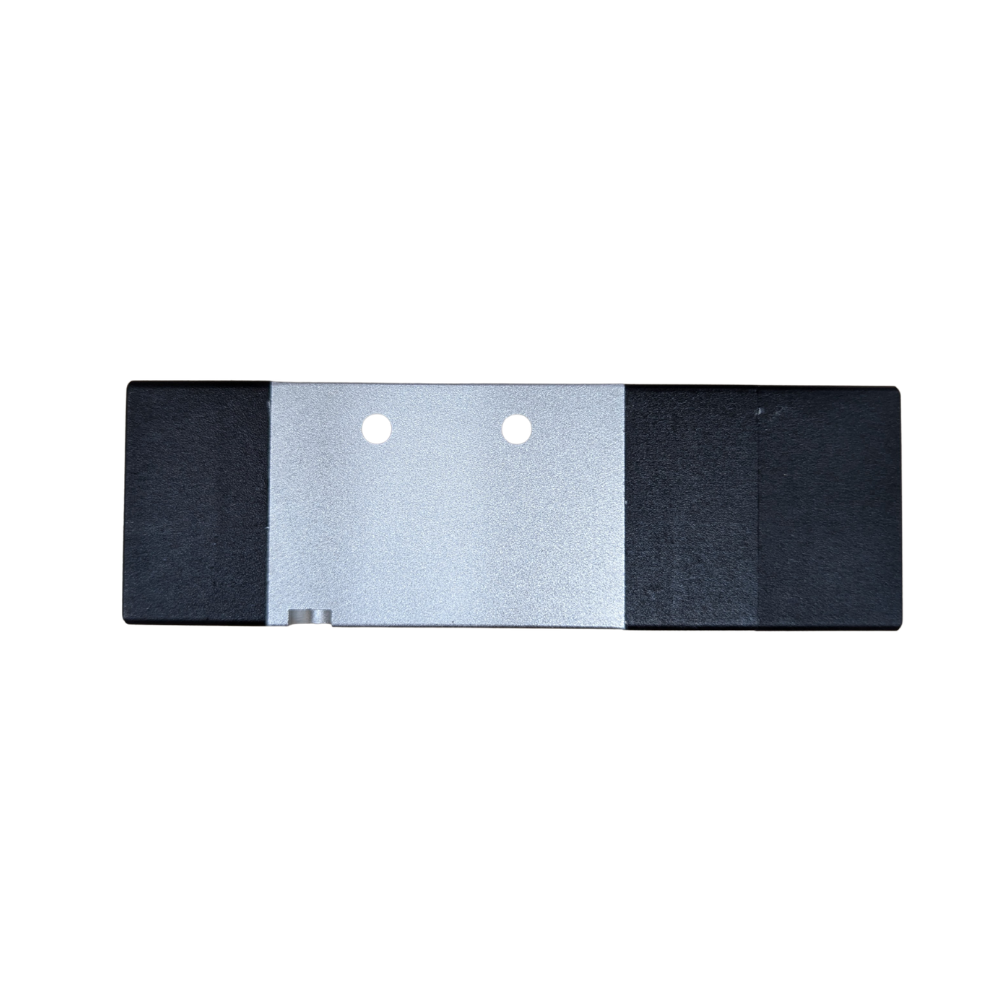

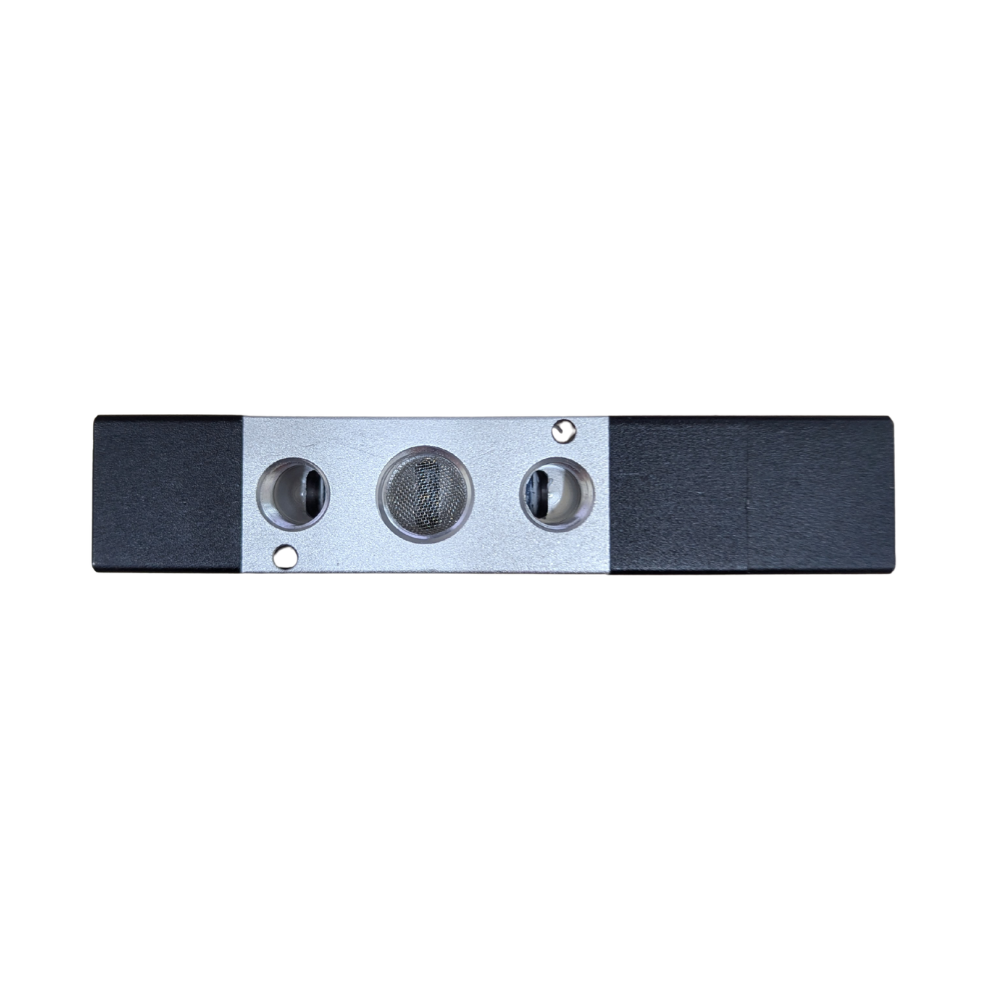

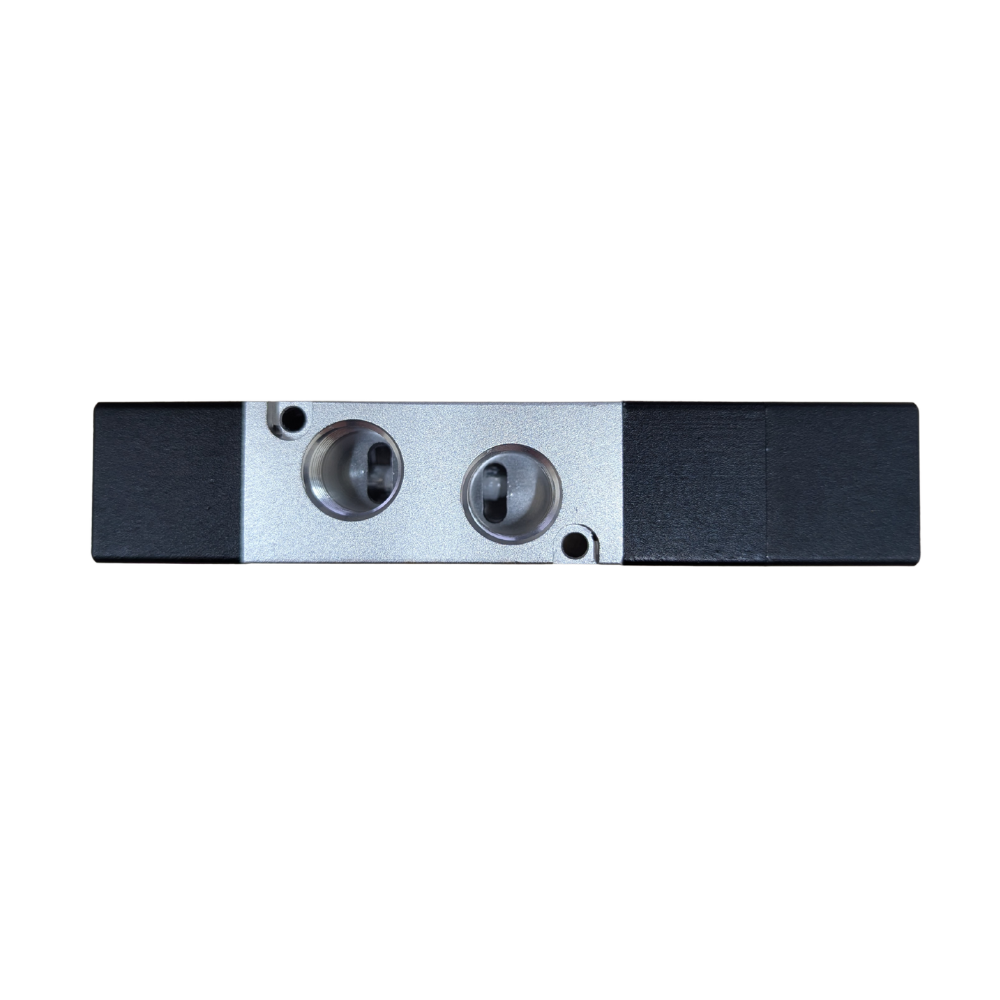

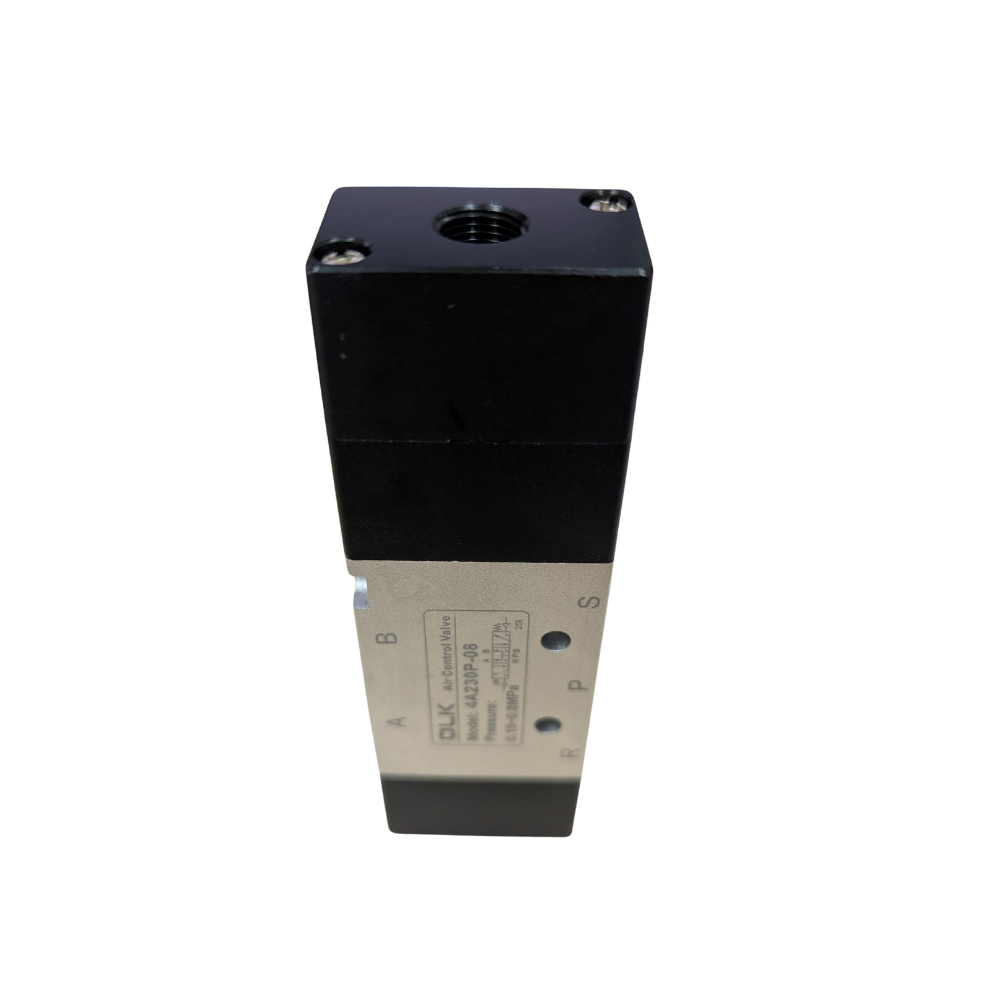

5-Way 3-Position Double Air Piloted Valve 1/4 PT – Pressure Centre
5-Way 3-Position Double Air Piloted Valve 1/4 PT – Pressure Centre
$165.00
Five-port, three-position double air piloted valve with a pressure-centre function, 1/4 inch PT supply and outlet ports, and 1/8 inch PT pilot and exhaust ports.
Part number 4A230P-08.
Description
Overview
The 5/3 air pilot valve uses double external pneumatic control to direct compressed air through five ports and three spool positions. Its pressure-centre neutral function suits circuits that must retain a defined pneumatic state when neither pilot signal is active, while the spool construction provides repeatable directional switching.
Features
- Five-port, three-position directional control
- Double air pilot actuation with pressure-centre function
- 1/4 inch PT supply and outlet ports with 1/8 inch PT exhaust and pilot ports
- 12 mm² effective flow area with Cv 0.67
Specifications and Materials
The valve operates with compressed air filtered to 40 microns and uses external pneumatic control. The aluminium-alloy body carries NBR sealing elements and does not require added lubrication. Operating pressure is 0.15 to 0.8 MPa, with a proof pressure of 1.2 MPa.
Part number: 4A230P-08.
See the AirTAC 4A200 Series technical guide
Compatibility and Fitment
Confirm the circuit requires a five-port, three-position, double-pilot valve with a pressure-centre neutral function. Also check the PT thread form, 1/4 inch main ports, 1/8 inch pilot and exhaust ports, mounting-hole layout and available body clearance. The main ordering risk is substituting the closed-centre or exhaust-centre version, which changes how the circuit behaves in the neutral position.
Related Parts
Check these alternate 4A200 Series valve functions against the pneumatic circuit before ordering.
| Use | Part number | Part type |
|---|---|---|
| Related version | 4A230C-08 | 5/3 closed-centre valve |
| Related version | 4A230E-08 | 5/3 exhaust-centre valve |
| Related version | 4A220-08 | 5/2 double-pilot valve |
Compliance and Safety
Isolate and exhaust the air supply before installation. Keep thread sealant clear of the ports, use clean filtered air, confirm adequate pilot pressure and leak-test every connection after pressurising the circuit. Do not substitute this general pneumatic valve for a purpose-designed braking valve unless the system specification identifies the exact function and pressure requirements.
Trailer Applications
The 5/3 air pilot valve suits pneumatic sequencing and actuator-control circuits that specify pressure-centre logic. Applications may include compatible workshop machinery and truck or trailer auxiliary systems such as body equipment, doors, suspension controls or other air-operated functions.
