Description

Overview

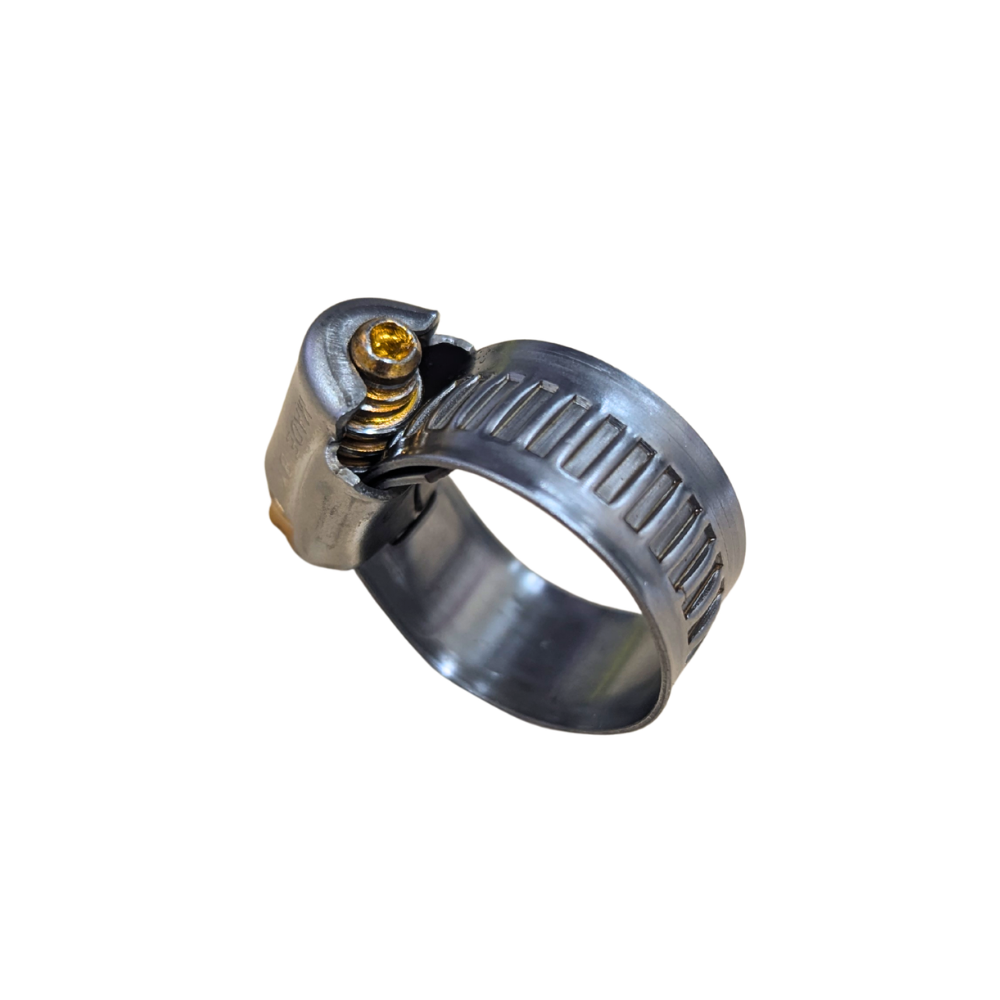

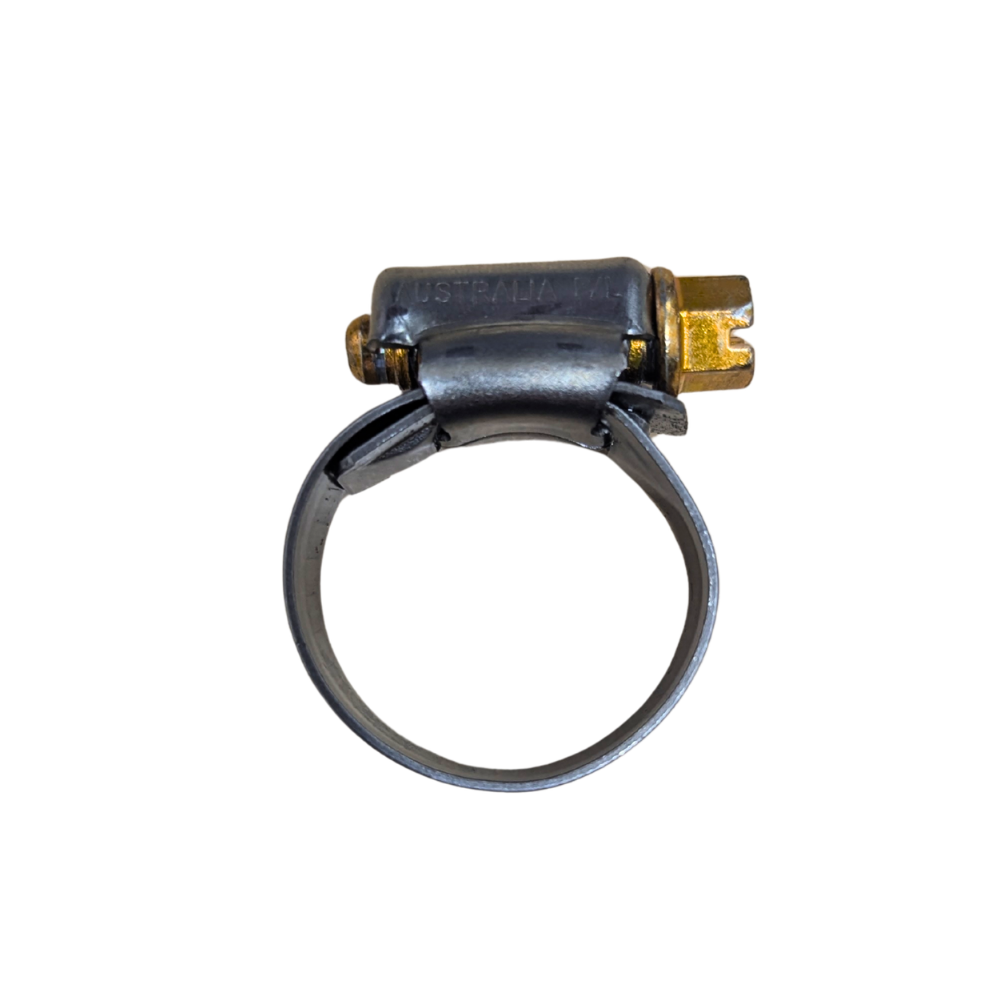

Tridon MP solid band hose clamp 16-24mm secures flexible hose to fittings with a smoother, more hose-friendly contact surface than a conventional fully perforated clamp. The rolled band edges reduce the risk of the clamp cutting or biting into the hose, while the solid underside avoids placing open perforations directly against the hose wall.

Features

• Solid, non-perforated band with no open slots against the hose
• Rolled edges and a smooth underside help prevent hose damage

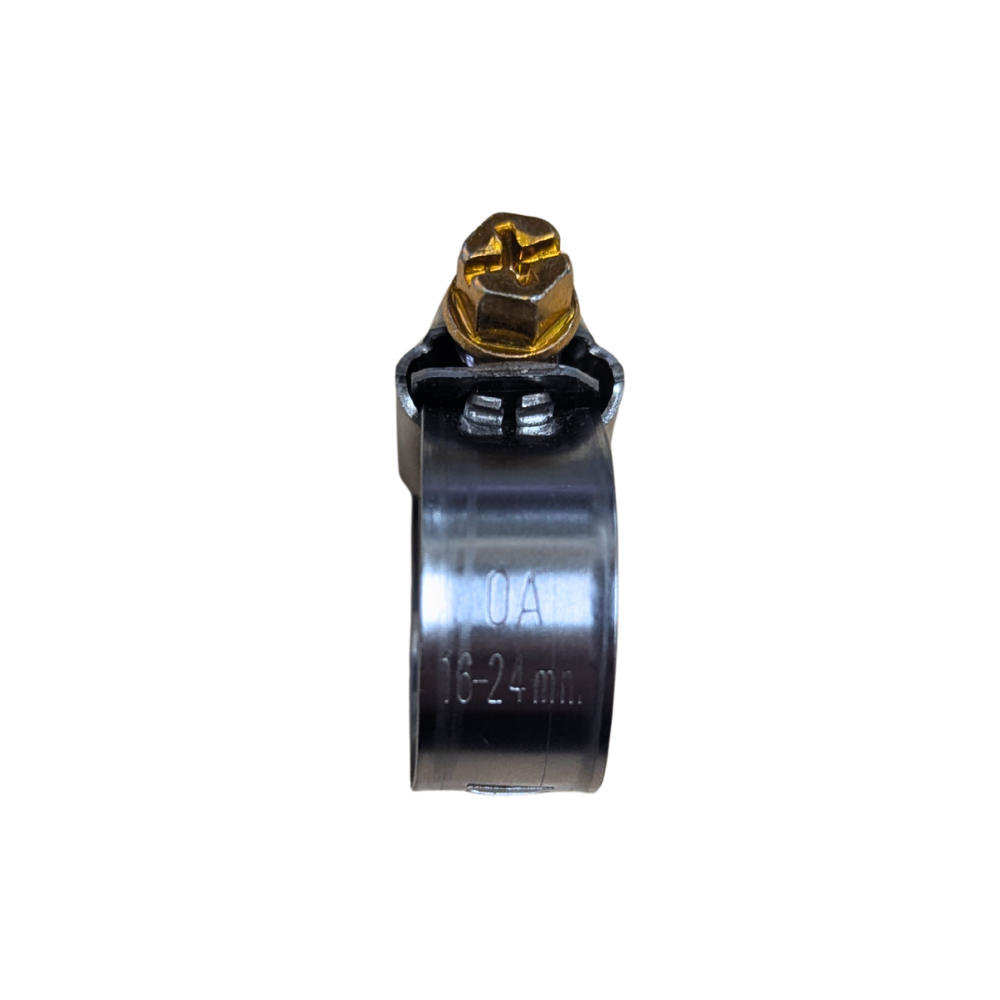

• 16mm to 24mm adjustment range with a 12.7mm regular-width band
• Supplied as a pack of 10 non-collared clamps

Specifications and Materials

The band and housing use 430 stainless steel, while the worm-drive screw uses zinc-plated mild steel. The continuous band provides a broad, smooth clamping surface instead of exposing the hose to the punched openings found in a standard perforated clamp.

Part number: MP0AP.

See the official Tridon MP Series specifications for manufacturer product details

Compatibility and Fitment

Measure the outside diameter of the hose after it is positioned over the fitting. The Tridon MP solid band hose clamp 16-24mm must tighten within its stated range without reaching either adjustment limit. Confirm that the 12.7mm band will sit fully on the fitting spigot without contacting an edge, bend or raised obstruction.

Compliance and Safety

Position the clamp behind the fitting bead where applicable and tighten it evenly. Do not overtighten, as excessive force can crush the fitting or damage the hose even when using a rolled-edge clamp. Inspect the hose for ageing, swelling, cuts and permanent clamp impressions before reuse.

Trailer Applications

The 16-24mm range suits matching coolant, heater, breather, water and general low-pressure hose connections across trailers, trucks, workshop equipment and industrial machinery. The solid band is particularly useful on softer hose where open perforations and sharp band edges may mark, pinch or deform the outer surface.

Why Choose ICS Trailers

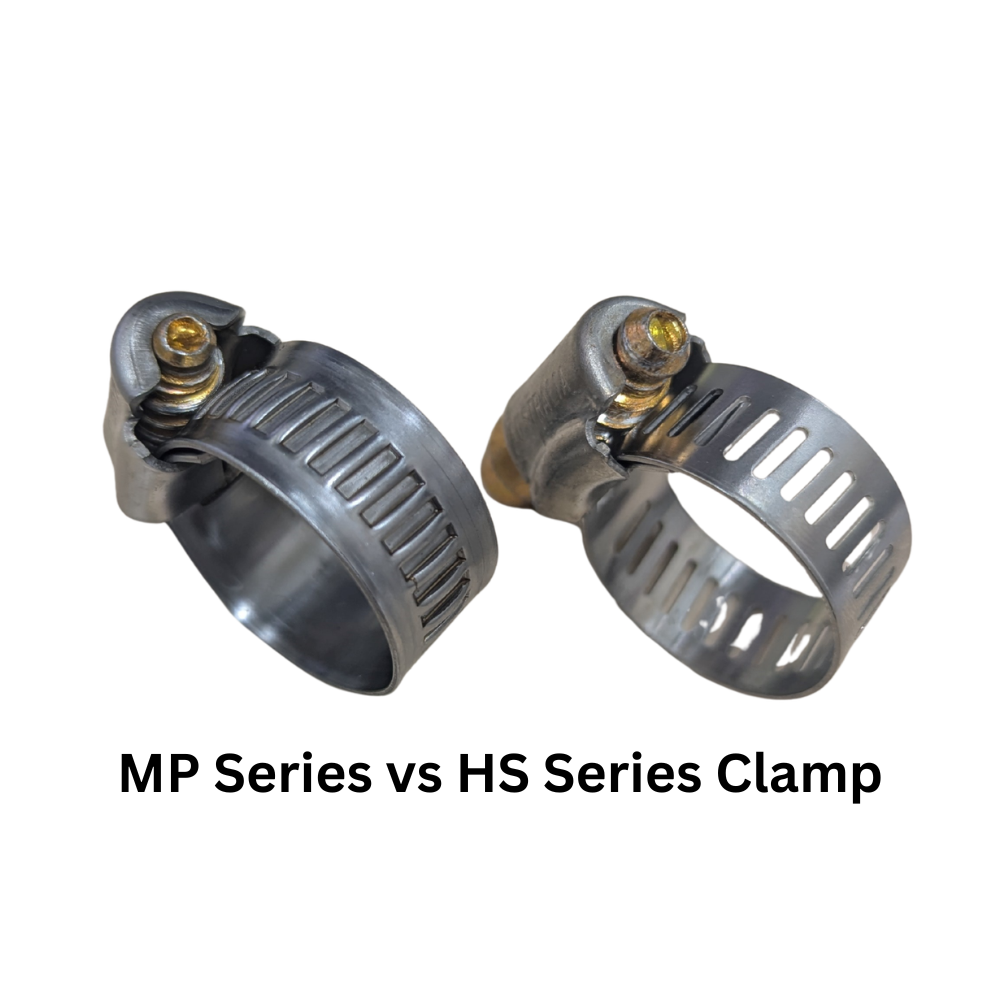

Two clamps with the same diameter range can treat the hose very differently. The rolled edges, smooth underside and covered band openings make this design a stronger option where protecting the hose and maintaining even sealing contact matter. ICS Trailers can help compare the hose outside diameter, fitting position and available band width when replacing an ordinary perforated clamp or repairing a recurring leak.
