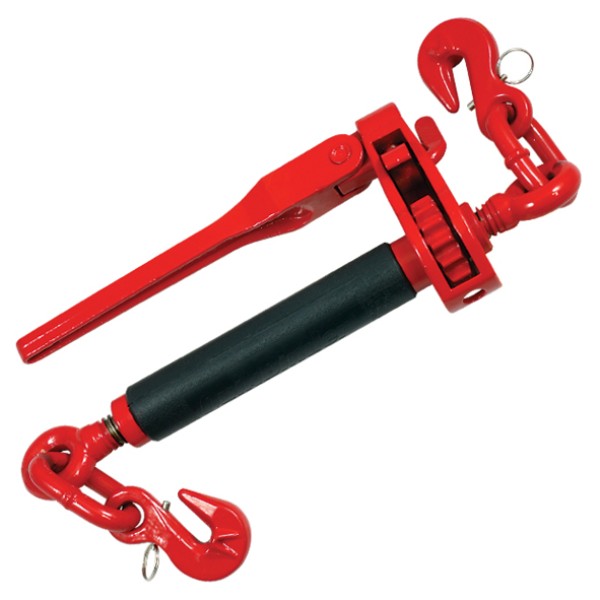

QuikBinder Plus ratchet load binder 8mm gives you controlled chain tensioning for securing loads on heavy vehicle trailers. It combines a free-spin adjustment mode with ratchet take-up, so you can remove slack quickly and then lock the load down with confidence. The folding handle also stores neatly and helps reduce snag points around deck hardware.

Features

• 3-position pawl with a free-spin setting for rapid adjustment
• Folding handle so the unit packs down for storage and safer handling
• Lockable design that accepts a long-shank padlock to help deter tampering
• Grab hooks at each end for direct connection to 8mm transport chain

Specifications and Materials

This binder uses a ratchet mechanism and a coated barrel grip to make adjustment easier when you are setting up multiple lashings. It suits 8mm chain for common transport restraint tasks, and the folded handle keeps leverage available without leaving a long handle sticking out when stowed.

• Suits chain size: 8mm
• Lashing capacity: 4000kg
• Take-up: 150mm
• End fittings: grab hooks each end

For general load restraint guidance, use the National Transport Commission Load Restraint Guide as a reference when selecting and using binders.

Part number: CA4990.

Compatibility and Fitment

Use this binder with correctly rated 8mm transport chain and suitable anchor points on the trailer or load. For repeat jobs, the QuikBinder Plus ratchet load binder 8mm helps you standardise your chain set-up. When you need fast set-up, use the free-spin position first to remove slack, then switch to ratchet take-up for final tension. After you tension the chain, fold the handle away so it stays clear of other gear and reduces unwanted movement during transport.

Compliance and Safety

This product is certified according to AS/NZS 4344:2001, so it suits applications where compliant chain components are required. However, the lowest-rated component still sets the system capacity, so match the binder, chain, hooks and anchor points to the job. Before each trip, check for bent links, damaged hooks, worn pawls or cracked welds, and replace suspect components instead of forcing them back into service.

When releasing tension, keep your body out of the potential recoil path and control the handle so it does not snap back. Also, avoid side-loading the hooks and keep the chain as straight as practical because that helps maintain working capacity and reduces wear.

Trailer Applications

QuikBinder Plus ratchet load binder 8mm suits tie-down work on flat tops, drop decks and low loaders where chain points or gate pockets are used. It works well for machinery, steel and general freight where you want a compact binder that still tensions hard. If you run multiple chains, using the same binder style across the load speeds set-up because the steps stay consistent.

Why Choose ICS Trailers

ICS Trailers supplies load restraint hardware for real transport conditions, and we can help you select parts that suit your trailer set-up. Browse Hardware parts at ICS Trailers in Hardware
